HEATER - Wiring diagram

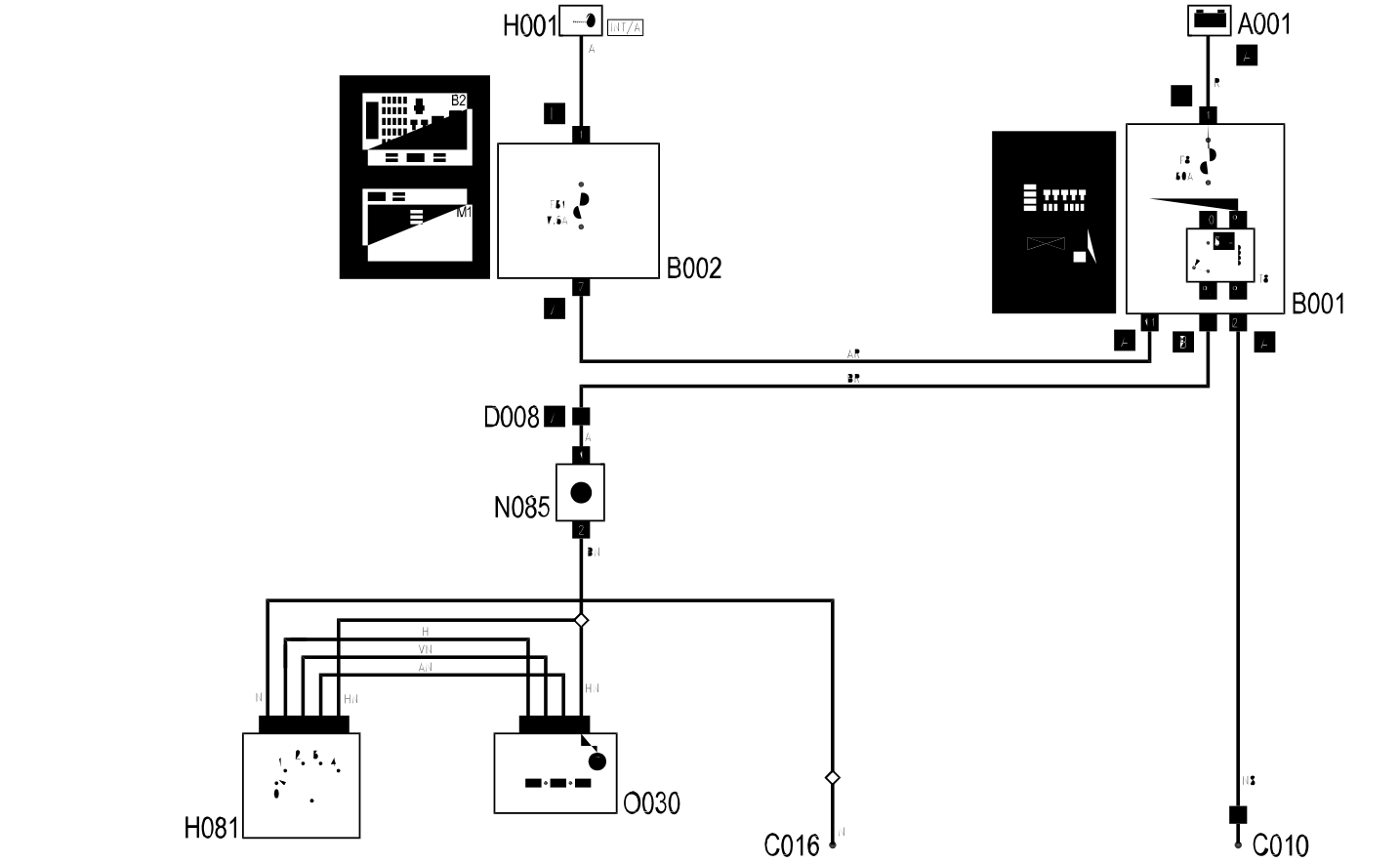

Wiring diagram
COMPONENTS
| Component code | Name | Assembly reference |
|---|---|---|
| A1 | Battery | 5530B |
| B1 | Engine compartment junction unit | 5505A |
| B2 | Junction unit under dashboard | 5505A |
| C10 | Front left earth | |
| C16 | Air conditioning earth | |
| D8 | Front / air conditioning - heater coupling | |
| D8 | Front coupling / air conditioner - with heating | |
| H1 | Ignition switch | 5520A |
| H81 | Climate control fan control | 5020B |
| N85 | Passenger compartment ventilation fan | 5040C |
| O30 | Air fan adjustment resistance | 5040C |
| O30 | Passenger compartment air fan adjustment resistance | 5040C |
