Introduction - ENGINE AIR SUPPLY CIRCUIT

1.3 JTD

STRUCTURE

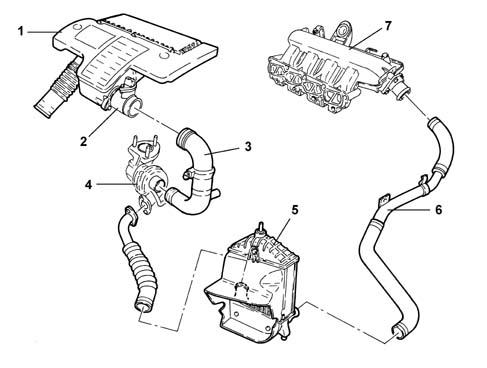

AIR SUPPLY SYSTEM

1 - Air filter complete with resonator

2 - Flow meter

3 - Connection sleeve to turbocharger

4 - Turbocharger

5 - Air-air heat exchanger (intercooler)

6 - Connecting sleeve between intercooler - air inlet manifold

7 - Manifold air intake
