Vacuum air circuit

Description 1048A

1.2 8v · Euro 3

The air intake circuit consists of various components which ensure that the air flow required by the engine in the various operating conditions is correctly directed.

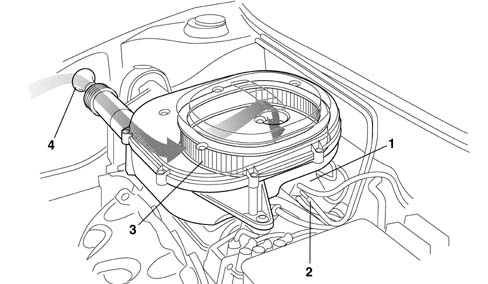

1, Inlet manifold

2, Engine crankcase gas intake (see 1080)

3, Air filter

4, Intake vent

1.2 16v · Euro 3

The air intake circuit consists of various components which ensure that the air flow required by the engine in the various operating conditions is correctly directed.

1, Gas intake from engine crankcase (blow-by) (see 1080)

2, Throttle casing (see 1056)

3, Air filter

4, Intake vent

1.4 16v

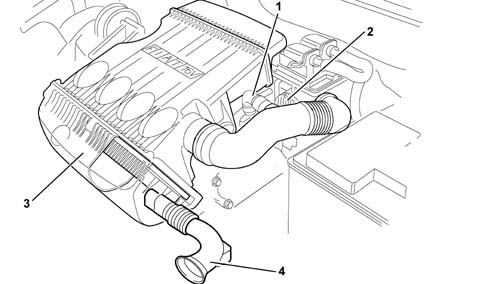

The air intake circuit consists of various components which ensure that the air flow required by the engine in the various operating conditions is correctly directed.

1, Gas intake from engine crankcase (blow-by) (see 1080)

2, Throttle casing (see 1056)

3, Air filter

4, Intake vent
