D89 Parking sensor coupling

Make

Lancia

Model

Ypsilon Factory Service Manual

Year

2003–2011

Section

Intermediate couplings › D89 Parking sensor coupling

Connectors and pin-outsD89 Parking sensor coupling

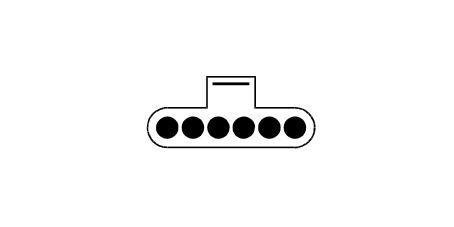

D89 Parking sensor coupling

Wiring	Colour
Electrical equipment	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		AV		M84	1
2		AL		M84	2
3		NZ		M84	6
4		CB		M84	3
5		BL		M84	5
6		CN		M84	4

Wiring	Colour
72 SUNROOF	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	AV		K97	A1
2	AL		K97	B1
3	NZ	X	K97
			K97	B2
			K97	C2
			K97
4	CB		K97	C1
5	BL	X	K97
			K97
			K97	C3
			K97
6	CN		K97	D1
