D81 Injector junction

Make

Lancia

Model

Ypsilon Factory Service Manual

Year

2003–2011

Section

Intermediate couplings › D81 Injector junction

Connectors and pin-outsD81 Injector junction

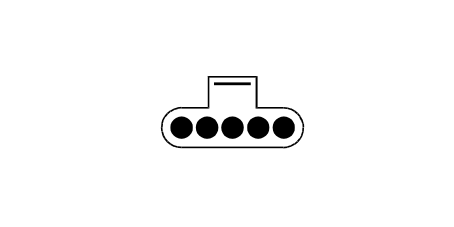

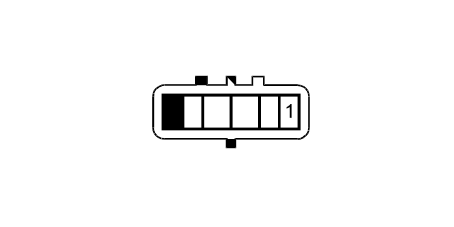

D81 Injector junction

1.2 16v, 1.4 16v

Wiring	Colour
50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	RN		M10B	34
2	1	MN		M10B	2
3	1	HN		M10B	18
4	1	LN		M10B	51
5	1,5	HG	X	B1C	18
				A30D	3
				A30B	3
				A30C	3
				A30A	3

Wiring	Colour
55 COILS AND FUEL INJECTORS	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		HV		N70D	2
2		CN		N70C	2
4		MR		N70A	2
3		BV		N70B	2
5		MB	X	N70A	1
				N70B	1
				N70C	1
				N70D	1
