A30 Ignition 'coil

Make

Lancia

Model

Ypsilon Factory Service Manual

Year

2003–2011

Section

Starting - recharging › A30 Ignition 'coil

Connectors and pin-outsA30 Ignition 'coil

A30 Ignition 'coil

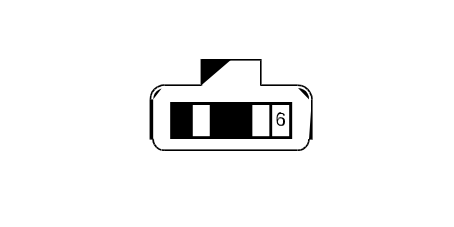

A30A – Engine

1.2 8v

Wiring	Colour
50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	MB	X	B1C	32
				A30B	1
2	1	MN		M10B	38

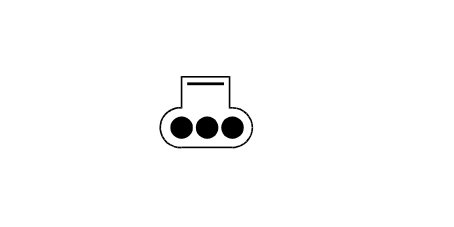

1.2 16v, 1.4 16v

Wiring	Colour
50 ENGINE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	LS		M10B	32
2	1	NZ	X	C40
				A30B	2
				A30C	2
				A30D	2
3	1	HG	X	B1C
				A30B	3
				A30C	3
				A30D	3
				D81	5

A30B – Engine

1.2 8v

Wiring	Colour
50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	MB	X	B1C	32
				A30A	1
2	1	NG		M10B	10

1.2 16v, 1.4 16v

Wiring	Colour
50 ENGINE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	GR		M10B	16
2	1	NZ	X	C40
				A30A	2
				A30C	2
				A30D	2
3	1	HG	X	B1C
				A30A	3
				A30C	3
				A30D	3
				D81	5

A30C – Engine

1.2 16v, 1.4 16v

Wiring	Colour
50 ENGINE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	BL		M10B	31
2	1	NZ	X	C40
				A30A	2
				A30B	2
				A30D	2
3	1	HG	X	B1C
				A30A	3
				A30B	3
				A30D	3
				D81	5

A30D – Engine

1.2 16v, 1.4 16v

Wiring	Colour
50 ENGINE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	LH		M10B	15
2	1	NZ	X	C40
				A30A	2
				A30B	2
				A30C	2
3	1	HG	X	B1C
				A30A	3
				A30B	3
				A30C	3
				D81	5
