REAR DISC BRAKES

Description 3310B

The rear braking system:

• is equipped with drum brakes with a 19 mm cylinder and 203 mm shoes incorporating an automatic play take-up device.

The rear braking system is equipped with a brake mechanism that is operated mechanically by means of the handbrake lever.

The hub outer race is fitted with a multipolar magnetic ring that indicates wheel movements to the active ABS sensor Characteristic of working principle 3340 A(B.S. ANTI-LOCK BRAKING SYSTEM .)secured to the suspension arm.

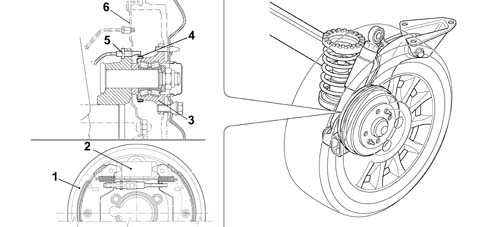

1 - Brake drum

2 - Expansion cylinder

3 - Hub outer race

4 - Multi-pole magnetic ring

5 - ABS active sensor

6 - Guard

7 - Handbrake link anchorage
