FRONT DISC BRAKES

Description 3310A

Different vehicle configurations have been adopted on the vehicle in view of weight and power differences between different versions:

• basic versions come with 257x12mm solid discs at the front and floating 48 mm brake calipers with automatic play take-up
• 1.4 16V/JTD/1.2 16V come with 257 x 22 mm ventilated discs at the front and 54 brake calipers.
• all vehicle versions come with floating cast iron calipers with automatic play take-up

A multipolar magnetic ring fitted to the inner hub bearing race indicates wheel movement to the active ABS sensor [Characteristic of working principle 3340 A(B.S. ANTI-LOCK BRAKING SYSTEM .)]

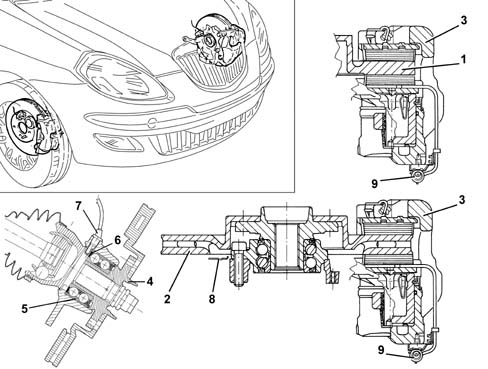

1 - Brake disc

2 - Ventilated brake disc

3 - Brake caliper

4 - Hub

5 - Hub bearing

6 - Magnetic ring

7 - Active ABS sensor

8 - Guard

9 - Pad wear warning light connection
