PROVISIONS
The power and torque curves illustrated can be obtained with the engine overhauled and run in (50 hours operation) without a fan and with an exhaust silencer and air filter fitted, at sea level.

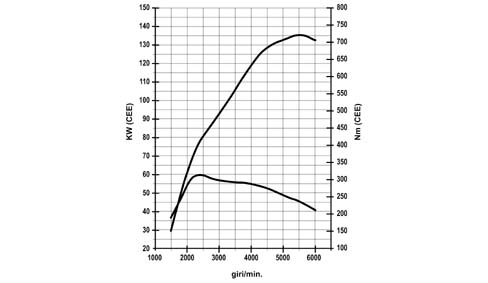

Max torque: 308 Nm at 2200 rpm
Max power: 136 KW at 5500 rpm

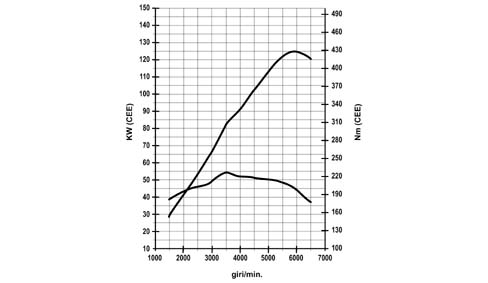

Max torque: 226 Nm at 3500 rpm
Max power: 125 kW at 6000 rpm

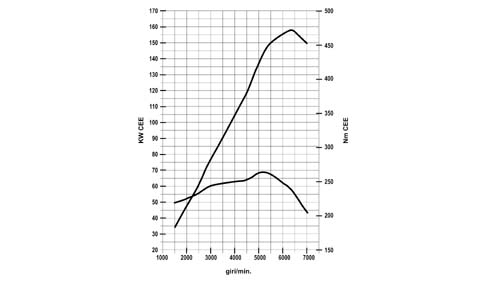

Max torque: 263 Nm at 5000 rpm
Max power: 158 KW at 6300 rpm

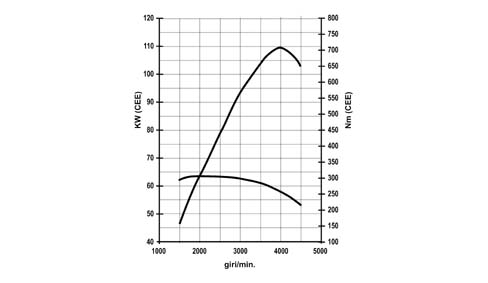

Max torque: 305 Nm at 1800 rpm
Max power: 110 KW at 4000 rpm

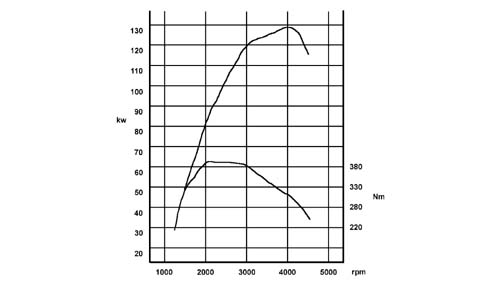

Max torque: 380 Nm at 2000 rpm
Max power: 130 KW at 4000 rpm
