Engine oil supply circuit
- Make
- Lancia
- Model
- Thesis Factory Service Manual
- Year
- 2002–2009
- Section
- Engine lubrication › Engine oil supply circuit
EngineEngine oil supply circuit

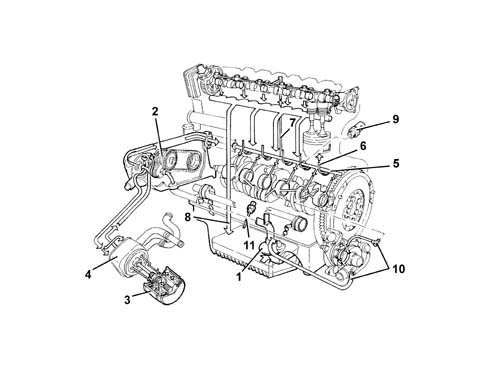

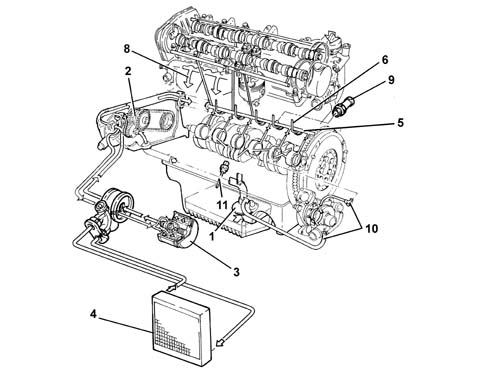

ENGINE OIL SUPPLY CIRCUIT
- 1 Suction head with filter mesh
- 2 Oil pump
- 3 Oil filter cartridge
- 4 Heat exchanger (water/oil)
- 5 Main longitudinal duct
- 6 Jets (piston skirt cooling)
- 7 Vertical channel (camshaft mounting lubrication)
- 8 Oil falling back into sump
- 9 Switch for engine oil pressure warning light
- 10 Turbocharger lubrication pipes
- 11 Engine oil level sensor.
- 1 Suction head with filter mesh
- 2 Oil pump
- 3 Oil filter cartridge
- 4 Heat exchanger (water/oil)
- 5 Main longitudinal duct
- 6 Jets (piston skirt cooling)
- 7 Vertical channel (camshaft mounting lubrication)
- 8 Oil falling back into sump
- 9 Switch for engine oil pressure warning light
- 10 Turbocharger lubrication pipes
- 11 Engine oil level sensor.
