EngineComposition

Composition

2.4 JTD 20V

STRUCTURE

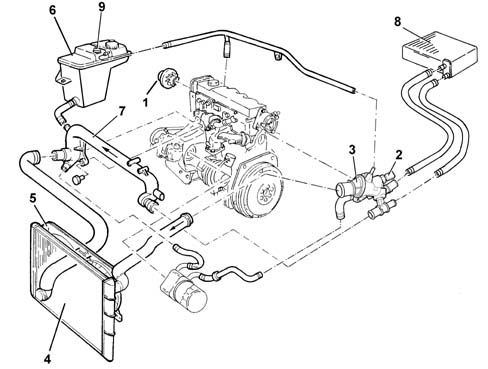

The engine cooling system is shown below.

Composition
  • 1 Water pump
  • 2 Engine coolant temperature sensor [DF 1060G]
  • 3 Thermostat
  • 4 Radiator
  • 5 Fans
  • 6 Supply reservoir
  • 7 Monobloc rigid water inlet pipe
  • 8 Heater unit
  • 9 Engine coolant level sensor

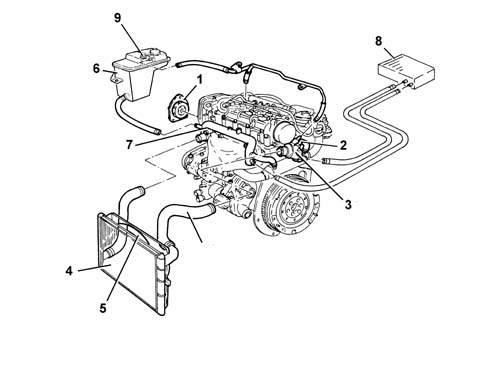

2.4 20V

STRUCTURE

Composition

2.4 JTD 10V

STRUCTURE

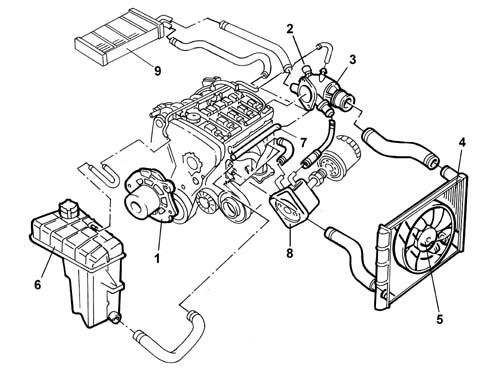

The engine cooling system is shown below.

Composition
  • 1 Water pump
  • 2 Engine coolant temperature sensor [DF 1060G]
  • 3 Thermostat
  • 4 Radiator
  • 5 Fans
  • 6 Supply reservoir
  • 7 Monobloc rigid water inlet pipe
  • 8 Heater unit
  • 9 Engine coolant level sensor

2.0 TB

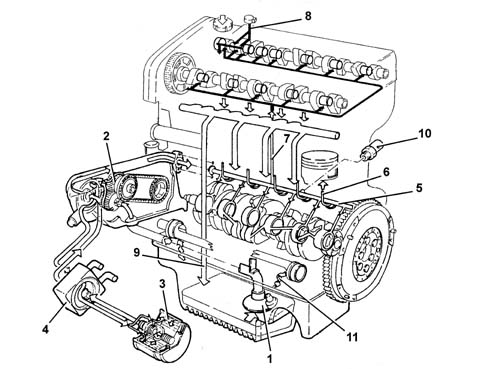

Structure

Composition

3.0 V6, 3.2 V6

STRUCTURE

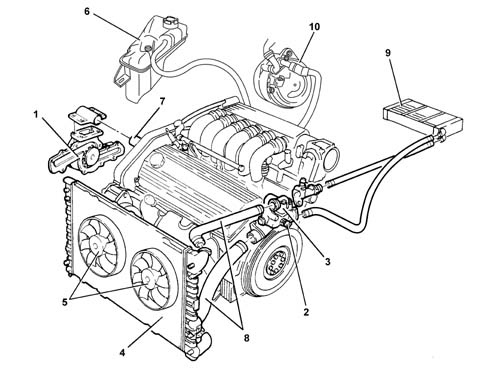

The engine cooling system is shown below.

Composition
  • 1 Coolant pump
  • 2 Coolant temperature sensor [DF1056B].
  • 3 Thermostat
  • 4 Radiator
  • 5 Electric fans
  • 6 Fuel tank
  • 7 Water pump rigid inlet pipe
  • 8 Heater unit
