Electrical equipmentPassenger door node (npp)

PASSENGER DOOR NODE (NPP)

SPECIFICATIONS

The Passenger Door Node is an electronic control unit integrated in the electric windows control panel in the passenger door.

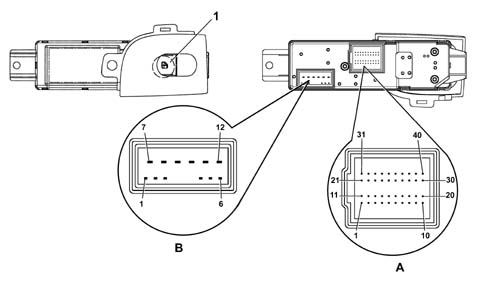

PASSENGER DOOR NODE (NPP)
  • 1 Electric window up/down button
  • A - 40 way connector housing
  • A - 12 way connector housing

OPERATION

The Passenger door Node carries out the following functions:

  • Network key status (INT) [F040]
  • Dimmed lighting [F041]
  • Memorizing of 3 driver's seat, steering column and mirror positions [F067]
  • Timed lighting of interior handles [F074]
  • Courtesy lights management [F089]
  • Management of doors/boot and fuel flap locking/unlocking [F092]
  • Management of front electric windows [F104]
  • Electric exterior mirrors [F119]
  • Timed management of defrosting [F126]
  • Management of courtesy light in exterior mirrors [F221]
  • Folding exterior mirrors [F222]
  • Electronic safety knob [F264]
  • Electric door/boot opening [F301]
  • Dead-lock engagement/release [F312]
  • Vehicle protection system signals [F322]

In addition it:

  • receives and transmits information on the B-CAN line (e.g.: diagnosis, warnings, commands, data)
  • integrates the front passenger electric window control
  • it connects with the front passenger door wiring

Connector A Pin Out 40 way

PINFUNCTION
1Negative signal from switch on PCP (Unlocking)
2Negative signal from motor bar switch (door unlocked)
3Handle switch protection reference
4Signal from potentiometer memorizing deflector vertical position
5not connected
6Signal from potentiometer memorizing deflector horizontal position
7Safety sensor on window guides (signal)
8Negative signal from switch on PCP (Locking)
9Protective reference for lock
10Defrosting reference
11Preparation for radiofrequency earth
12n.c
13n.c
14not connected
15Interior handle lighting LED positive supply
16Diffused light protective reference
17Handle LED protective reference
18Negative signal from switch in lock
19not connected
20PCP protective reference
21Negative control for courtesy light in door
22Negative control for courtesy light in mirror
23Supply for deflector position memorizing potentiometers
24Mirror horizontal deflector implementation
25Mirror vertical deflector implementation
26Mirror deflector motors joint supply
27Negative signal for opening using switch on outer handle
28not connected
29Dimmed supply for door locking/unlocking control
30not connected
31B - CAN A
32B - CAN B
33Activation of defroster in mirror (positive)
34Mirror folding (mirror opening)
35Negative signal from motor bar switch (motor locked)
36Mirror folding (mirror closing)
37Diffused lighting positive supply
38Control unit earth
39Safety sensor protective reference
40Mirror memorizing potentiometers protective reference

Connector B Pin Out 6+6 way

PINFUNCTION
1Door status LED protective reference
2Door status (locked) LED positive supply
3Door status (unlocked) LED positive supply
4Lock retention activation
5Door locking geared motor
6Door unlocking geared motor
7Supply for electric windows and mirror actuators from F-48 CPL
8Window raising activation
9Window lowering activation
10Lock retention activation (dead-lock engagement function)
11+30 from F-61 for NPP/lock actuators
12Control unit earth
