DRIVER'S DOOR NODE (NPG)

SPECIFICATIONS

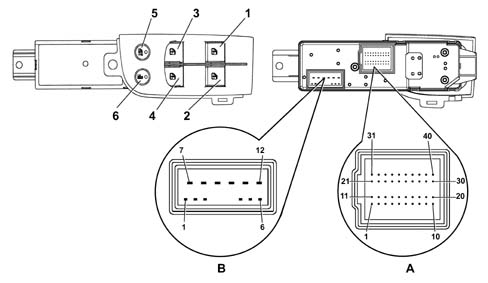

The Driver's Door Node is an electronic control unit integrated in the electric windows control panel in the driver's door.

• 1 Left front electric window up/down button
• 2 Right front electric window up/down button
• 3 Left rear electric window up/down button
• 4 Right rear electric window up/down button
• 5 Rear door window inhibition button
• 6 Rear door child safety locks button
• A - 40 way connector housing
• A - 12 way connector housing

OPERATION

The Driver's Door Node carries out the following functions:

• Network key status (INT) [F040]
• Dimmed lighting [F041]
• Memorizing of 3 driver's seat, steering column and mirror positions [F067]
• Timed lighting of interior handles [F074]
• Courtesy lights management [F089]
• Management of doors/boot and fuel flap locking/unlocking [F092]
• Management of front electric windows [F104]
• Management of rear electric windows [F105]
• Inhibition from driver's seat of rear window movement [F107]
• Electric exterior mirrors [F119]
• Deactivation of mirror folding above 40 km/h [F121]
• Timed management of defrosting [F126]
• Outside temperature management [F192]
• Management of courtesy light in exterior mirrors [F221]
• Folding exterior mirrors [F222]
• Electric child-proof locks [F263]
• Electronic safety knob [F264]
• Electric door/boot opening [F301]
• Dead-lock engagement/release [F312]
• Vehicle protection system signals [F322]

In addition it:

• receives and transmits information on the B-CAN line (e.g.: diagnosis, warnings, commands, data)
• integrates the window opening commands for the four doors, the inhibition command for the rear windows and the command to engage the child safety locks for the rear doors,
• it connects with the driver's front door wiring.

Connector A Pin Out 40 way

Connector B Pin Out 6+6 way
