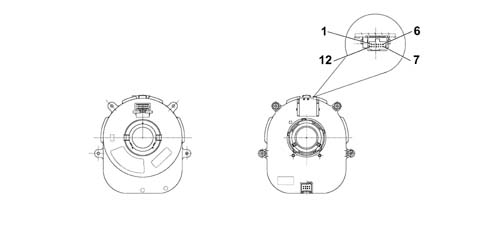

CLOCK SPRING INTERFACE (CVS)
SPECIFICATIONS
CLOCK SPRING PIN OUT
| PIN | Function |
|---|---|
| 1 | earth |
| 2 | + 30 |
| 3 | B - CAN B |
| 4 | B - CAN A |
| 5 | INT from F49 CPL (15) |
| 6 | Steering Wheel Node Earth / steering wheel controls (horn) |
| 7 | tiptr - |
| 8 | tiptr + |
| 9 | airbag 2 - |
| 10 | airbag 2 + |
| 11 | airbag 1 - |
| 12 | airbag 1 + |
