D048 Console/centre bridge coupling
- Make
- Lancia
- Model
- Thesis Factory Service Manual
- Year
- 2002–2009
- Section
- Intermediate couplings › D048 Console/centre bridge coupling
Connectors and pin-outsD048 Console/centre bridge coupling
D048 Console/centre bridge coupling

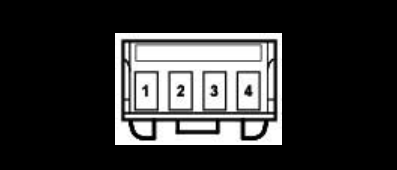

D048A – Centre console bridge
| Wiring | Colour |
|---|---|
| 78 CENTRE CONSOLE BRIDGE |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Diameter | Colour | Node | Connector | Pin | |
| 1 | 0,5 | L | D048B | 2 | |
| 2 | 0,5 | N | D048B | 1 | |
| 3 | 0,35 | BR | D048B | 3 | |
| Wiring | Colour |
|---|---|
| 78 CENTRE CONSOLE BRIDGE |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Diameter | Colour | Node | Connector | Pin | |
| 1 | 0,5 | L | D048B | 2 | |
| 2 | 0,5 | N | D048B | 1 | |
| 3 | 0,35 | BR | D048B | 3 | |
| Wiring | Colour |
|---|---|
| 78 CENTRE CONSOLE BRIDGE |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Diameter | Colour | Node | Connector | Pin | |
| 1 | 0,5 | L | D048B | 2 | |
| 2 | 0,5 | N | D048B | 1 | |
| 3 | 0,35 | BR | D048B | 3 | |
| Wiring | Colour |
|---|---|
| 78 CENTRE CONSOLE BRIDGE |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Diameter | Colour | Node | Connector | Pin | |
| 1 | 0,5 | L | D048B | 2 | |
| 2 | 0,5 | N | D048B | 1 | |
| 3 | 0,35 | BR | D048B | 3 | |
| Wiring | Colour |
|---|---|
| 65 AIR CONDITIONING |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Diameter | Colour | Node | Connector | Pin | |
| 1 | 0,35 | C | X | D021 | 3 |
| M070A | 10 | ||||
| 2 | 0,35 | N | X | D021 | 6 |
| M070D | 1 | ||||
| D120 | 6 | ||||
| D120 | 12 | ||||
| 3 | 0,35 | BL | M070A | 3 | |
| Wiring | Colour |
|---|---|
| 65 AIR CONDITIONING |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Diameter | Colour | Node | Connector | Pin | |
| 3 | 0,35 | BL | M070A | 3 | |
| 1 | 0,35 | C | X | D021 | 3 |
| M070A | 10 | ||||
| 2 | 0,35 | N | X | D021 | 6 |
| M070D | 1 | ||||
| D120 | 6 | ||||
| D120 | 12 | ||||
| Wiring | Colour |
|---|---|
| 65 AIR CONDITIONING |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Diameter | Colour | Node | Connector | Pin | |
| 3 | 0,35 | BL | M070A | 3 | |
| 1 | 0,35 | C | X | D021 | 3 |
| M070A | 10 | ||||
| 2 | 0,35 | N | X | D021 | 6 |
| M070D | 1 | ||||
| D120 | 6 | ||||
| D120 | 12 | ||||
| Wiring | Colour |
|---|---|
| 65 AIR CONDITIONING |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Diameter | Colour | Node | Connector | Pin | |
| 3 | 0,35 | BL | M070A | 3 | |
| 1 | 0,35 | C | X | D021 | 3 |
| M070A | 10 | ||||
| 2 | 0,35 | N | X | D021 | 6 |
| M070D | 1 | ||||
| D120 | 6 | ||||
| D120 | 12 | ||||
D048B – Centre console bridge
| Wiring | Colour |
|---|---|
| 78 CENTRE CONSOLE BRIDGE |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Diameter | Colour | Node | Connector | Pin | |
| 1 | 0,5 | N | D048A | 2 | |
| 2 | 0,5 | L | D048A | 1 | |
| 3 | 0,35 | BR | D048A | 3 | |
| Wiring | Colour |
|---|---|
| 78 CENTRE CONSOLE BRIDGE |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Diameter | Colour | Node | Connector | Pin | |
| 1 | 0,5 | N | D048A | 2 | |
| 2 | 0,5 | L | D048A | 1 | |
| 3 | 0,35 | BR | D048A | 3 | |
| Wiring | Colour |
|---|---|
| 78 CENTRE CONSOLE BRIDGE |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Diameter | Colour | Node | Connector | Pin | |
| 1 | 0,5 | N | D048A | 2 | |
| 2 | 0,5 | L | D048A | 1 | |
| 3 | 0,35 | BR | D048A | 3 | |
| Wiring | Colour |
|---|---|
| 78 CENTRE CONSOLE BRIDGE |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Diameter | Colour | Node | Connector | Pin | |
| 1 | 0,5 | N | D048A | 2 | |
| 2 | 0,5 | L | D048A | 1 | |
| 3 | 0,35 | BR | D048A | 3 | |
