C057 Electric brake earth

Make

Lancia

Model

Thesis Factory Service Manual

Year

2002–2009

Section

Earths › C057 Electric brake earth

Connectors and pin-outsC057 Electric brake earth

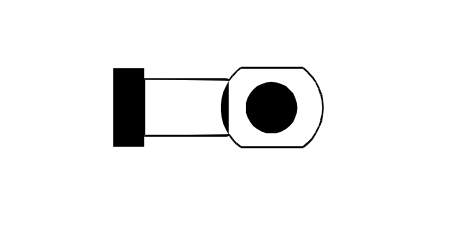

C057 Electric brake earth

2.4 20V

Wiring	Colour
25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	4	N		M059	30
1	4	N		M059	28
1	0,5	N		M059	24

2.0 TB

Wiring	Colour
25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	4	N		M059	30
1	4	N		M059	28
1	0,5	N		M059	24

2.4 JTD 10V

Wiring	Colour
25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	4	N		M059	30
1	4	N		M059	28
1	0,5	N		M059	24

3.0 V6

Wiring	Colour
25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	4	N		M059	30
1	4	N		M059	28
1	0,5	N		M059	24
