Lancia Thesis Factory Service Manual (2002-2009)21 · Connectors and pin-outs
21 · General

C056 Amplifier earth

Make
Lancia
Model
Thesis Factory Service Manual
Year
2002–2009
Section
Earths › C056 Amplifier earth
Connectors and pin-outsC056 Amplifier earth

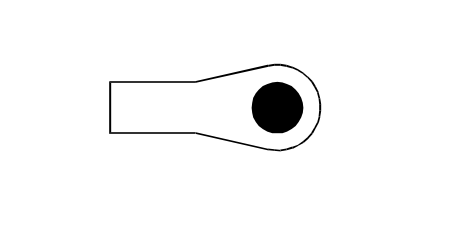

C056 Amplifier earth

2.4 JTD 10V

C056 Amplifier earth
WiringColour
25 REAR
PinCableDestination
DiameterColourNodeConnectorPin
1100,5NP070B2
1100,5NP070B6

3.0 V6

C056 Amplifier earth
WiringColour
25 REAR
PinCableDestination
DiameterColourNodeConnectorPin
1100,5NP070B2
1100,5NP070B6

2.4 20V

C056 Amplifier earth
WiringColour
25 REAR
PinCableDestination
DiameterColourNodeConnectorPin
14NP0709

2.0 TB

C056 Amplifier earth
WiringColour
25 REAR
PinCableDestination
DiameterColourNodeConnectorPin
14NP0709

2.4 JTD 10V

C056 Amplifier earth
WiringColour
25 REAR
PinCableDestination
DiameterColourNodeConnectorPin
14NP0709

3.0 V6

C056 Amplifier earth
WiringColour
25 REAR
PinCableDestination
DiameterColourNodeConnectorPin
14NP0709

2.4 20V

C056 Amplifier earth
WiringColour
25 REAR
PinCableDestination
DiameterColourNodeConnectorPin
1100,5NP070B2
1100,5NP070B6

2.0 TB

C056 Amplifier earth
WiringColour
25 REAR
PinCableDestination
DiameterColourNodeConnectorPin
1100,5NP070B2
1100,5NP070B6
