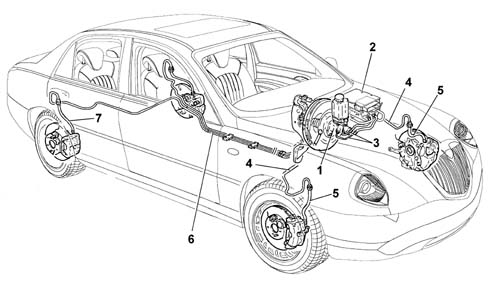

Introduction ABS SYSTEM PIPES
- 1 Brake pump
- 2 ABS control unit
- 3 Pipes from brake pump to ABS control unit
- 4 Rigid pipes from control unit to flexible front brake pipes
- 5 Flexible front pipes
- 6 Rigid pipes from control unit to flexible rear brake pipes
- 7 Flexible rear brake pipes
