REAR SIDE DOOR - R.R.

Operation 7210E38 · EXTERNAL PARTS

Carry out the operations with the assistance of a second mechanic taking care not to damage the paintwork and the actual door.

Removing

- Disconnect the negative battery terminal.

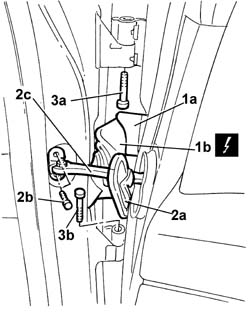

1. Lift up the tab (1a) and disconnect the electrical connector (1b).

DescriptionConnector
1bLeft rear door couplingD035
DescriptionConnector
1bRight rear door couplingD036

2. Release the protection (2a) and undo the bolts (2b) fixing the door check strap (2c).

3. Undo the upper bolt (3a) and the lower bolt (3b) fixing the door hinges.

REAR SIDE DOOR - R.R.

1. Detach the door and rest it on a suitable support.

REAR SIDE DOOR - R.R.

Refitting

- Check that the door is not damaged.

- If necessary, retouch the paintwork.

- Position the door and tighten the fixing bolts to torque.

Value - daNmFasteningComponentØ
(upper) 1.5BoltFRONT SIDE DOOR HINGESM6
Value - daNmFasteningComponentØ
(lower) 1.5BoltFRONT SIDE DOOR HINGESM6

- Connect the electrical connector and close the sealing tab

DescriptionConnector
Left rear door couplingD035
DescriptionConnector
Right rear door couplingD036

- Connect the negative battery terminal.

See in Op. 7010A14 Rear side DOOR - adjust centering and moulding - includes adaptation of hinges and seals on door compartment
