Front side door

Operation 7210E36 · EXTERNAL PARTS

Carry out the operations with the assistance of a second operator taking care not to damage the paintwork and the actual door.

Removing

- Disconnect the negative battery terminal.

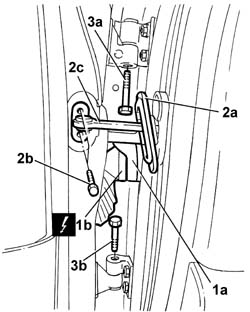

1. Lift up the tab (1a) and disconnect the electrical connector (1b).

2. Release the protection (2a) and undo the bolts (2b) fixing the door check strap (2c).

3. Undo the upper bolt (3a) and the lower bolt (3b) for the door hinges.

1. Detach the door and rest it on a suitable support.

Refitting

- Check that the door is not damaged.

- If necessary, retouch the paintwork.

- Position the door and tighten the fixing bolts to torque.

- Connect the electrical connector and close the sealing tab.

- Connect the negative battery terminal.

See in Op. 7005A14 front side door - adjust centering and moulding - includes adaptation of hinges and seals on door compartment
