Body fittingsSingle rear seat cushion - R.R.
Single rear seat cushion - R.R.
Removing

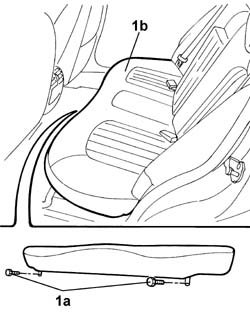

1. Undo the fixing bolts (1a) and remove the singe rear seat cushion (1b).
Refitting
- Fit the single rear seat cushion and tighten the fixing bolts to torque.
| Value - daNm | Fastening | Component | Ø | |
|---|---|---|---|---|
| 4 | Bolt | REAR SEAT CUSHION TRIM | M10 X 1.25 |
