REAR SEAT BACKREST - R.R.

Operation 7050A19 · REAR SEAT ASSEMBLY

Removing

See in Op. 7050A20 Single rear seat cushion - R.R.

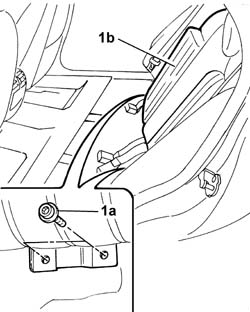

1. Undo the bolts (1a) and remove the backrest (1b), releasing it from the rear and centre side seat belts.

Refitting

- Place the backrest in position and tighten the fixing bolts to torque.

	Value - daNm	Fastening	Component	Ø
	4	Bolt	REAR SEAT BACKREST	M12 X 1.25

See in Op. 7050A20 Single rear seat cushion - R.R.
