POWER STEERING BOX - R+R

Operation 4130A10 · POWER STEERING BOX

Removing

See

Op. 7055B54 UNDER ENGINE PROTECTION/GUARD - R.R.

See

Op. 4130A14 POWER STEERING BOX COVER - R R

See

Op. 4450B12 FRONT WHEELS (TWO) - R+R

Work from the right side of the vehicle.

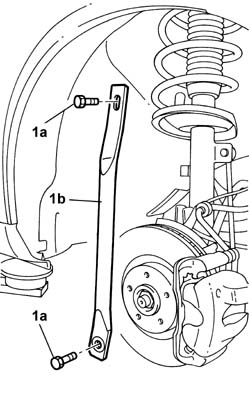

1. Undo bolts (1a) and remove connecting link (1b).

Working from the right side of the vehicle.

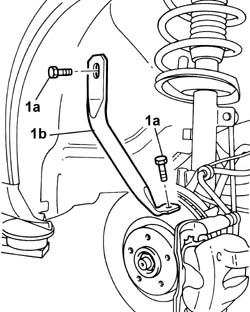

1. Undo bolts (1a) and remove connecting link (1b).

Carry out the same operation fon both sides.

1. Undo the steering head nut.

2. Use tool (2a) to release steering head (4b).

1. Position terminals (1a) on the power steering fluid delivery and return pipes (1b).

Position a suitable container to recover the power steering fluid.

1. Undo connectors (1a) securing power steering pipes (1b) and move them out of the work area.

2. Undo the bolt securing the steering box to the steering column.

1. Undo power steering box bolts (1a) and recover fastening device (1b).

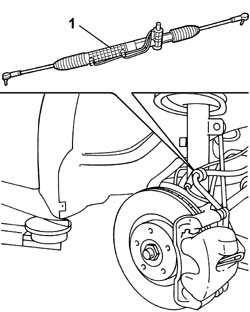

1. Remove the steering box from the right side of the vehicle.

Refitting

Place the power steering box in position.

Screw in the power steering box fasteners to the beam and tighten to torque.

Tighten the low pressure pipe connectors (1a) and the high pressure pipe connectorss (1b) to to the specified torque.

Remove the terminals from the power steering fluid pipes.

Fit the steering heads and screw in the fixing bolt before tightening to torque.

Place the connecting links in position and screw in the bolts before tightening to torque.

See

Op. 4450B12 FRONT WHEELS (TWO) - R+R

See

Op. 4130A14 POWER STEERING BOX COVER - R R

See

Op. 7055B54 UNDER ENGINE PROTECTION/GUARD - R.R.

The power assisted steering system is self-bleeding; this is done by steering completely to the right and the left with the engine running and the vehicle stationary.
