ANALOGUE CONTROL PANEL - R+R

Operation 5560B07 · ANALOGUE CONTROL PANEL

Removing

Op. 5560B07 ANALOGUE CONTROL PANEL - R+R

- Disconnect the negative battery terminal.

Op. 7040A74 TRIM UNDER CONTROL PANEL - R.R.

1. Undo the retaining bolts.

- Partly extract the panel.

2. Disconnect the electrical connection.

3. Remove the control panel.

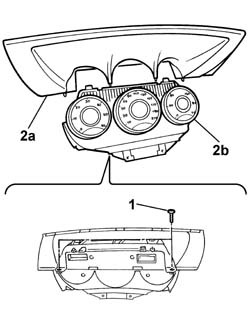

1. Undo the retaining bolts.

2. Separate the surround (2a) from the instrument panel (2b).

Refitting

- Position the instrument panel surround and tighten the fixing bolts.

- Connect the electrical connection.

- Position the control panel and tighten the fixing bolts.

Op. 7040A74 TRIM UNDER CONTROL PANEL - R.R.

- Connect the negative battery terminal.

Op. 5530B56 BATTERY DRIP TRAY COVER - R.R.
