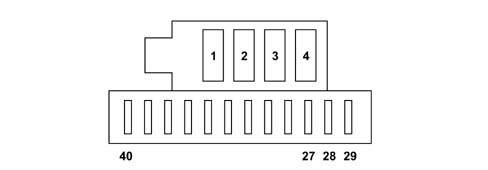

BATTERY COMPARTMENT FUSE HOLDER

INTRODUCTION

There is a fuse box, located in the battery compartment (by the front passenger''s feet).

FUSES	Amperage	Function
1	40A	Right electric sliding side door
2	40A	Left electric sliding side door
3	30A	HI-FI amplifier
4		Free
29		Free
30		Free
31		Free
32	25A	Electrically adjusted driver''s seat
33	25A	Electrically adjusted passenger seat
34	20A	Third row sun roof
35	20A	Second row sun roof
36	10A	Passenger heated seat
37	10A	Driver''s heated seat
38	15A	Child electric locks
39	20A	12V rear socket
40	20°	12V front socket
