P044 parking sensor speaker

Make

Fiat

Model

Ulysse Factory Service Manual

Year

2002–2010

Section

Various consumers › P044 parking sensor speaker

Connectors and pin-outsP044 parking sensor speaker

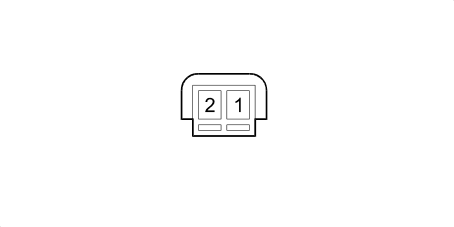

P044 PARKING SENSOR SPEAKER

3.0 24V V6

2.2 16V JTD

2.0 16V JTD

2.0 16v

Wiring	Colour
See 25 REAR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	L - 7509		See M084A PARKING SENSOR CONTROL UNIT (REAR)	2
2	0,5	G - 7510		See M084A PARKING SENSOR CONTROL UNIT (REAR)	10

2.0 16V JTD

Wiring	Colour
See 25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		7509		See M084A PARKING SENSOR CONTROL UNIT (REAR)	2
2		7510		See M084A PARKING SENSOR CONTROL UNIT (REAR)	10

2.2 16V JTD

Wiring	Colour
See 25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		7509		See M084A PARKING SENSOR CONTROL UNIT (REAR)	2
2		7510		See M084A PARKING SENSOR CONTROL UNIT (REAR)	10

3.0 24V V6

Wiring	Colour
See 25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		7509		See M084A PARKING SENSOR CONTROL UNIT (REAR)	2
2		7510		See M084A PARKING SENSOR CONTROL UNIT (REAR)	10
