J136 child lock relay

Make

Fiat

Model

Ulysse Factory Service Manual

Year

2002–2010

Section

Relays › J136 child lock relay

Connectors and pin-outsJ136 child lock relay

J136 CHILD LOCK RELAY

3.0 24V V6

2.2 16V JTD

2.0 16V JTD

2.0 16v

Wiring	Colour
See 25 REAR	NERO

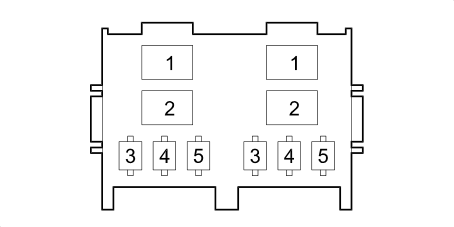

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1A	0,35	V - XC2UC	X	See D042A COURTESY LIGHT COUPLING (SUN ROOF BRIDGE)	5
				See D042A COURTESY LIGHT COUPLING (SUN ROOF BRIDGE)	14
				See D071B PASSENGER SEAT COUPLING (REAR)	1
				See D070B DRIVER'S SEAT COUPLING (REAR)	1
				See I135 LEFT SLIDING SIDE DOOR OPENING SWITCH ON LEFT CENTRE PILLAR	4
				See I136 RIGHT SLIDING SIDE DOOR OPENING SWITCH ON RIGHT CENTRE PILLAR	4
				See J136 CHILD LOCK RELAY	1B
				See M001F BODY COMPUTER (REAR)	3
				See M171A SLIDING SIDE DOOR NODE (REAR)	4
2A	0,35	BG - 6279		See M001I BODY COMPUTER (REAR)	36
3A	0,5	M - 6252A		See D197 RIGHT SLIDING DOOR COUPLING	3
3A	0,5	B - 6252B		See D196 LEFT SLIDING DOOR COUPLING	3
4A	1,00	GV - M626A	X	See C020D PASSENGER SIDE DASHBOARD EARTH (REAR)
5A	1,00	G - B626A		See B098B ADDITIONAL FUSE BOX (REAR)	G38
1B	0,35	S - XC2UC	X	See D042A COURTESY LIGHT COUPLING (SUN ROOF BRIDGE)	5
				See D042A COURTESY LIGHT COUPLING (SUN ROOF BRIDGE)	14
				See D071B PASSENGER SEAT COUPLING (REAR)	1
				See D070B DRIVER'S SEAT COUPLING (REAR)	1
				See I135 LEFT SLIDING SIDE DOOR OPENING SWITCH ON LEFT CENTRE PILLAR	4
				See I136 RIGHT SLIDING SIDE DOOR OPENING SWITCH ON RIGHT CENTRE PILLAR	4
				See J136 CHILD LOCK RELAY	1A
				See M001F BODY COMPUTER (REAR)	3
				See M171A SLIDING SIDE DOOR NODE (REAR)	4
2B	0,35	C - 6278		See M001I BODY COMPUTER (REAR)	35
3B	0,5	L - 6253A		See D197 RIGHT SLIDING DOOR COUPLING	4
3B	0,5	M - 6253B		See D196 LEFT SLIDING DOOR COUPLING	4
4B	1,00	GV - M626B	X	See C020D PASSENGER SIDE DASHBOARD EARTH (REAR)
5B	1,00	Z - B626B		See B098B ADDITIONAL FUSE BOX (REAR)	G38

2.0 16V JTD

Wiring	Colour
See 25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1A		XC2UC	X	See J136 CHILD LOCK RELAY	1B
				See M171A SLIDING SIDE DOOR NODE (REAR)	4
				M001F	3
2A		6279		M001I	36
3A		6252A		See D197 RIGHT SLIDING DOOR COUPLING	3
3A		6252B		See D196 LEFT SLIDING DOOR COUPLING	3
4A		M626A	X	See J136 CHILD LOCK RELAY	4B
5A		B626A		B098B	G38
1B		XC2UC	X	See J136 CHILD LOCK RELAY	1A
				See M171A SLIDING SIDE DOOR NODE (REAR)	4
				M001F	3
2B		6278		M001I	35
3B		6253A		See D197 RIGHT SLIDING DOOR COUPLING	2
3B		6253B		See D196 LEFT SLIDING DOOR COUPLING	2
4B		M626A	X	See J136 CHILD LOCK RELAY	AB
5B		B626B		B098B	G38

2.2 16V JTD

Wiring	Colour
See 25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1A		XC2UC	X	See J136 CHILD LOCK RELAY	1B
				See M171A SLIDING SIDE DOOR NODE (REAR)	4
				M001F	3
2A		6279		M001I	36
3A		6252A		See D197 RIGHT SLIDING DOOR COUPLING	3
3A		6252B		See D196 LEFT SLIDING DOOR COUPLING	3
4A		M626A	X	See J136 CHILD LOCK RELAY	4B
5A		B626A		B098B	G38
1B		XC2UC	X	See J136 CHILD LOCK RELAY	1A
				See M171A SLIDING SIDE DOOR NODE (REAR)	4
				M001F	3
2B		6278		M001I	35
3B		6253A		See D197 RIGHT SLIDING DOOR COUPLING	2
3B		6253B		See D196 LEFT SLIDING DOOR COUPLING	2
4B		M626A	X	See J136 CHILD LOCK RELAY	AB
5B		B626B		B098B	G38

3.0 24V V6

Wiring	Colour
See 25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1A		XC2UC	X	See J136 CHILD LOCK RELAY	1B
				See M171A SLIDING SIDE DOOR NODE (REAR)	4
				M001F	3
2A		6279		M001I	36
3A		6252A		See D197 RIGHT SLIDING DOOR COUPLING	3
3A		6252B		See D196 LEFT SLIDING DOOR COUPLING	3
4A		M626A	X	See J136 CHILD LOCK RELAY	4B
5A		B626A		B098B	G38
1B		XC2UC	X	See J136 CHILD LOCK RELAY	1A
				See M171A SLIDING SIDE DOOR NODE (REAR)	4
				M001F	3
2B		6278		M001I	35
3B		6253A		See D197 RIGHT SLIDING DOOR COUPLING	2
3B		6253B		See D196 LEFT SLIDING DOOR COUPLING	2
4B		M626A	X	See J136 CHILD LOCK RELAY	AB
5B		B626B		B098B	G38
