D212 no. plate lights coupling

Make

Fiat

Model

Ulysse Factory Service Manual

Year

2002–2010

Section

Intermediate couplings › D212 no. plate lights coupling

Connectors and pin-outsD212 no. plate lights coupling

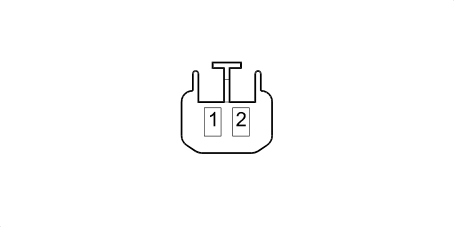

D212 NO. PLATE LIGHTS COUPLING

2.0 16V JTD

3.0 24V V6

2.2 16V JTD

2.0 16V JTD

2.2 16V JTD

2.0 16v

3.0 24V V6

2.0 16v

Wiring	Colour
See 27 TAILGATE	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		G - 264B		See F050 LEFT NUMBER PLATE LIGHT	1
1		G - 264A		See F051 RIGHT NUMBER PLATE LIGHT	1
2		GV - M2633		See F051 RIGHT NUMBER PLATE LIGHT	2
2		GV - M2636		See F050 LEFT NUMBER PLATE LIGHT	2

2.0 16V JTD

Wiring	Colour
See 27 TAILGATE

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		264A		See D085 REAR/TAILGATE COUPLING (REAR)	8
2		N2636	X	C031C
				See F040 ADDITIONAL REAR LIGHT (THIRD BRAKE LIGHT)	3
				See N016 REARSCREEN WIPER MOTOR	3
				P055B	1
				See I011 BOOT RELEASE SWITCH(TAILGATE)	2
				See N057 BOOT LOCK GEARED MOTOR (TAILGATE)	2

2.2 16V JTD

Wiring	Colour
See 27 TAILGATE

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		264A		See D085 REAR/TAILGATE COUPLING (REAR)	8
2		N2636	X	C031C
				See F040 ADDITIONAL REAR LIGHT (THIRD BRAKE LIGHT)	3
				See N016 REARSCREEN WIPER MOTOR	3
				P055B	1
				See I011 BOOT RELEASE SWITCH(TAILGATE)	2
				See N057 BOOT LOCK GEARED MOTOR (TAILGATE)	2

3.0 24V V6

Wiring	Colour
See 27 TAILGATE

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		264A		See D085 REAR/TAILGATE COUPLING (REAR)	8
2		N2636	X	C031C
				See F040 ADDITIONAL REAR LIGHT (THIRD BRAKE LIGHT)	3
				See N016 REARSCREEN WIPER MOTOR	3
				P055B	1
				See I011 BOOT RELEASE SWITCH(TAILGATE)	2
				See N057 BOOT LOCK GEARED MOTOR (TAILGATE)	2

2.0 16v

Wiring	Colour
See 27 TAILGATE

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		264B		See F050 LEFT NUMBER PLATE LIGHT (TAILGATE)	1
1		264A		See F051 RIGHT NUMBER PLATE LIGHT	1
2		N2633		See F051 RIGHT NUMBER PLATE LIGHT	2
2		N2636		See F050 LEFT NUMBER PLATE LIGHT (TAILGATE)	2

2.0 16V JTD

Wiring	Colour
See 27 TAILGATE

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		264B		See F050 LEFT NUMBER PLATE LIGHT (TAILGATE)	1
1		264A		See F051 RIGHT NUMBER PLATE LIGHT	1
2		N2633		See F051 RIGHT NUMBER PLATE LIGHT	2
2		N2636		See F050 LEFT NUMBER PLATE LIGHT (TAILGATE)	2

2.2 16V JTD

Wiring	Colour
See 27 TAILGATE

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		264B		See F050 LEFT NUMBER PLATE LIGHT (TAILGATE)	1
1		264A		See F051 RIGHT NUMBER PLATE LIGHT	1
2		N2633		See F051 RIGHT NUMBER PLATE LIGHT	2
2		N2636		See F050 LEFT NUMBER PLATE LIGHT (TAILGATE)	2

3.0 24V V6

Wiring	Colour
See 27 TAILGATE

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		264B		See F050 LEFT NUMBER PLATE LIGHT (TAILGATE)	1
1		264A		See F051 RIGHT NUMBER PLATE LIGHT	1
2		N2633		See F051 RIGHT NUMBER PLATE LIGHT	2
2		N2636		See F050 LEFT NUMBER PLATE LIGHT (TAILGATE)	2

2.0 16V JTD, 2.2 16V JTD · MY 2005

Wiring	Colour
See 27 TAILGATE	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	B - 264		See D085 REAR/TAILGATE COUPLING	8
2	0,5	GV - M264	X	See C031C RIGHT REAR EARTH (TAILGATE)	1
				See F040 ADDITIONAL REAR LIGHT (THIRD BRAKE LIGHT)	3
				See I011 BOOT RELEASE SWITCH	2
				See N016 REARSCREEN WIPER MOTOR	3
				See N057 BOOT LOCK GEARED MOTOR	2
				See	1
