D073 trailer preparation coupling

Make

Fiat

Model

Ulysse Factory Service Manual

Year

2002–2010

Section

Intermediate couplings › D073 trailer preparation coupling

Connectors and pin-outsD073 trailer preparation coupling

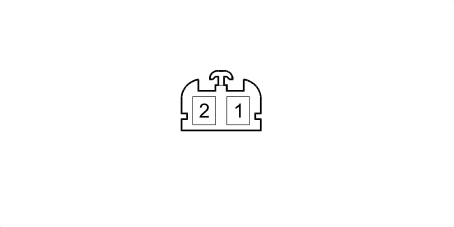

D073 TRAILER PREPARATION COUPLING

2.0 16V JTD

2.2 16V JTD

3.0 24V V6

2.0 16v

Wiring	Colour
See 25 REAR	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	4	BG - B200		See M001H BODY COMPUTER (REAR)	16
2	0,5	B - 7508		See M084A PARKING SENSOR CONTROL UNIT (REAR)	12

2.0 16V JTD

Wiring	Colour
See 25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		B200		M001H	16
2		7508		See M084A PARKING SENSOR CONTROL UNIT (REAR)	12

2.2 16V JTD

Wiring	Colour
See 25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		B200		M001H	16
2		7508		See M084A PARKING SENSOR CONTROL UNIT (REAR)	12

3.0 24V V6

Wiring	Colour
See 25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		B200		M001H	16
2		7508		See M084A PARKING SENSOR CONTROL UNIT (REAR)	12

D073A – Rear service braid

2.0 16V JTD, 2.2 16V JTD · MY 2005

Wiring	Colour
See 126 REAR SERVICE BRAID

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	1	B - 222		See M181C Trailer control unit (REAR SERVICE BRAID)	12
	1	BG - 264		See M181C Trailer control unit (REAR SERVICE BRAID)	15
	1	GV - M200A	X	See M181C Trailer control unit (REAR SERVICE BRAID)	3
	1	Z - 210	X	See M181C Trailer control unit (REAR SERVICE BRAID)	7
				See M181C Trailer control unit (REAR SERVICE BRAID)	6
				See M181C Trailer control unit (REAR SERVICE BRAID)	16
	1	N - 263		See M181C Trailer control unit (REAR SERVICE BRAID)	2
	1	G - 289		See M181C Trailer control unit (REAR SERVICE BRAID)	5
	1	V - 290		See M181C Trailer control unit (REAR SERVICE BRAID)	4
	1	C - 2052		See M181C Trailer control unit (REAR SERVICE BRAID)	11
	2,5	RG - B200		See M181C Trailer control unit (REAR SERVICE BRAID)	8
	2,5	GV - M200B	X	See M181C Trailer control unit (REAR SERVICE BRAID)	3

D073B – Rear service braid

2.0 16V JTD, 2.2 16V JTD · MY 2005

Wiring	Colour
See 126 REAR SERVICE BRAID

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,6	M - Z200A		See B070 TRAILER FUSE	2

D073C – Rear service braid

2.0 16V JTD, 2.2 16V JTD · MY 2005

Wiring	Colour
See 126 REAR SERVICE BRAID

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,6	H - 7508		See M181C Trailer control unit (REAR SERVICE BRAID)	1
