G035 Ashtray light

Make

Fiat

Model

Ulysse Factory Service Manual

Year

2002–2010

Section

Interior lights › G035 Ashtray light

Connectors and pin-outsG035 Ashtray light

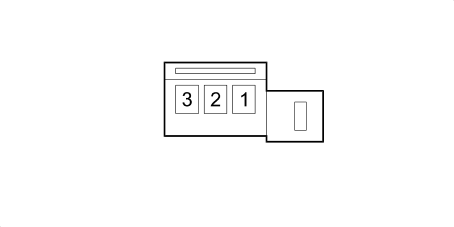

G035 Ashtray light

2.0 16V JTD, 2.2 16V JTD · MY 2005

Wiring	Colour
See 20 DASHBOARD	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,35	V3054	X	See H037A GEAR CONTROLS (DASHBOARD)	2
				See I115 STABILITY CONTROL SYSTEM SWITCH	4
				See M001D BODY COMPUTER (DASHBOARD)	7
				See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	11
				See P050 CIGAR LIGHTER / CURRENT SOCKET	1
3	0,35	GV - M3054	X	See C020A PASSENGER SIDE DASHBOARD EARTH (DASHBOARD)	1
				See E050 INSTRUMENT PANEL	7
				See G030 GLOVE COMPARTMENT LIGHT	2
				See H020 HAZARD WARNING LIGHTS SWITCH	3
				See I115 STABILITY CONTROL SYSTEM SWITCH	3
				See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	16
				See M093D STEERING WHEEL NODE CONTROL UNIT (NVO) (DASHBOARD)	3
				See M140 WARNING LIGHTS AND MILOMETER CONTROL UNIT (NSO)	1
				See P050 CIGAR LIGHTER / CURRENT SOCKET	3
				See Q011B AIR BAG IN DASHBOARD (PASSENGER SIDE) (DASHBOARD)	1

2.0 16V JTD

2.2 16V JTD

3.0 24V V6

2.0 16v

Wiring	Colour
See 20 DASHBOARD	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,35	V - V3054	X	See M001D BODY COMPUTER (DASHBOARD)	7
				See P050 CIGAR LIGHTER / CURRENT SOCKET	1
				See H037A GEAR CONTROLS (DASHBOARD)	2
				See I115 STABILITY CONTROL SYSTEM SWITCH	4
3	0,35	GV - M3054	X	See C020A PASSENGER SIDE DASHBOARD EARTH (DASHBOARD)

2.0 16V JTD

Wiring	Colour
See 20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		V3064	X	M001D	7
				See P050 CIGAR LIGHTER / CURRENT SOCKET	1
				See H037A GEAR CONTROLS(FACIA)	1
				See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	11
				See I115 STABILITY CONTROL SYSTEM SWITCH(FACIA)	4
3		M3064	X	See C020A PASSENGER SIDE DASHBOARD EARTH (DASHBOARD)

2.2 16V JTD

Wiring	Colour
See 20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		V3064	X	M001D	7
				See P050 CIGAR LIGHTER / CURRENT SOCKET	1
				See H037A GEAR CONTROLS(FACIA)	1
				See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	11
				See I115 STABILITY CONTROL SYSTEM SWITCH(FACIA)	4
3		M3064	X	See C020A PASSENGER SIDE DASHBOARD EARTH (DASHBOARD)

3.0 24V V6

Wiring	Colour
See 20 DASHBOARD

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		V3064	X	M001D	7
				See P050 CIGAR LIGHTER / CURRENT SOCKET	1
				See H037A GEAR CONTROLS(FACIA)	1
				See M070A CLIMATE CONTROL SYSTEM CONTROL UNIT (DASHBOARD)	11
				See I115 STABILITY CONTROL SYSTEM SWITCH(FACIA)	4
3		M3064	X	See C020A PASSENGER SIDE DASHBOARD EARTH (DASHBOARD)
