Overhead camshaft - r r on vehicle

Operation 1036B10 · Overhead camshaft

1.1

Removing

- 1048A10 air cleaner filtering element - replace

- 5510C30 engine timing sensor - r+r

- 1016A20 single cam cover - r + r and replace gasket

- 4450B04 right front wheel r r

- 5510C26 rpm sensor - r+r

- 1092B60 alternator drive belt - r + r

- 1092A10 Crankshaft services PULLEY - R.R.

- 1032D12 timing system protective cover(s) - r + r

- 7055A42 front grille - r+r

- 1032B10 toothed timing belt - r + r for timing adjustment or replacement

- 1032B40 toothed-driven pulley (one) - r + r with timing belt removed

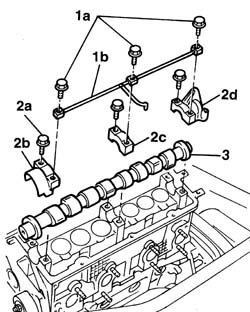

1. Undo the fixing bolts (1a) and remove the oil supply pipe to the camshaft covers (1b).

2. Undo the fixing bolts (2a) and remove the camshaft caps (2b), (2c) and (2d).

3. Remove the camshaft.

1.1 · Air Conditioner

Removing

- 1048A10 air cleaner filtering element - replace

- 5510C30 engine timing sensor - r+r

- 1016A20 single cam cover - r + r and replace gasket

- 4450B04 right front wheel r r

- 5510C26 rpm sensor - r+r

- 1092B40 air conditioner compressor/alternator drive belt - r + r

- 1092A12 crankshaft pulley - r+r for versions with air conditioner

- 1032D12 timing system protective cover(s) - r + r

- 7055A42 front grille - r+r

- 1032B14 toothed timing belt - r + r for timing adjustment or replacement versions with air conditioner

- 1032B40 toothed-driven pulley (one) - r + r with timing belt removed

1. Undo the fixing bolts (1a) and remove the oil supply pipe to the camshaft covers (1b).

2. Undo the fixing bolts (2a) and remove the camshaft caps (2b), (2c) and (2d).

3. Remove the camshaft.

1.2 8v

Removing

- 1048A10 air cleaner filtering element - replace

- 5510C30 engine timing sensor - r+r

- 1016A20 single cam cover - r + r and replace gasket

- 4450B04 right front wheel r r

- 5510C26 rpm sensor - r+r

- 1092B60 alternator drive belt - r + r

- 1092A10 Crankshaft services PULLEY - R.R.

- 1032D12 timing system protective cover(s) - r + r

- 7055A42 front grille - r+r

- 1032B10 toothed timing belt - r + r for timing adjustment or replacement

- 1032B40 toothed-driven pulley (one) - r + r with timing belt removed

1. Undo the fixing bolts (1a) and remove the oil supply pipe to the camshaft covers (1b).

2. Undo the fixing bolts (2a) and remove the camshaft covers (2b), (2c) and (2d).

3. Remove the camshaft.

1.2 8v · Air Conditioner

Removing

- 1048A10 air cleaner filtering element - replace

- 5510C30 engine timing sensor - r+r

- 1016A20 single cam cover - r + r and replace gasket

- 4450B04 right front wheel r r

- 5510C26 rpm sensor - r+r

- 1092B40 air conditioner compressor/alternator drive belt - r + r

- 1092A12 crankshaft pulley - r+r for versions with air conditioner

- 1032D12 timing system protective cover(s) - r + r

- 7055A42 front grille - r+r

- 1032B14 toothed timing belt - r + r for timing adjustment or replacement versions with air conditioner

- 1032B40 toothed-driven pulley (one) - r + r with timing belt removed

1. Undo the fixing bolts (1a) and remove the oil supply pipe to the camshaft covers (1b).

2. Undo the fixing bolts (2a) and remove the camshaft caps (2b), (2c) and (2d).

3. Remove the camshaft.

1.1

Refitting

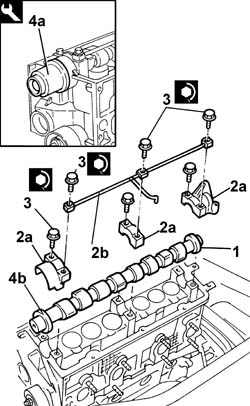

1. Position the camshaft.

2. Position the camshaft caps (2a) and the oil supply pipe (2b).

3. Tighten to torque the bolts securing the camshaft caps.

4. Using the tool (4a), fit the new oil seal (4b) in the housing on the front cover.

1.1 · Air Conditioner

Refitting

1. Position the camshaft.

2. Position the camshaft caps (2a) and oil supply pipe (2b).

3. Tighten to torque the bolts securing the camshaft caps.

4. Using the tool (4a), fit the new oil seal (4b) in the housing on the front cover.

1.2 8v

Refitting

1. Position the camshaft.

2. Fit the camshaft caps (2a) and oil delivery pipe (2b).

3. Tighten the camshaft cap bolts to torque.

4. Using the tool (4a), fit the new oil seal (4b) in the housing on the front cover.

1.2 8v · Air Conditioner

Refitting

1. Position the camshaft.

2. Position the camshaft caps (2a) and the oil supply pipe (2b).

3. Tighten the camshaft cap bolts to torque.

4. Using the tool (4a), fit the new oil seal (4b) in the housing on the front cover.

1.1

- 1032B40 toothed-driven pulley (one) - r + r with timing belt removed

- 1032B10 toothed timing belt - r + r for timing adjustment or replacement

- 7055A42 front grille - r+r

- 1032D12 timing system protective cover(s) - r + r

- 1092A10 Crankshaft services PULLEY - R.R.

- 1092B60 alternator drive belt - r + r

- 1092B64 alternator drive belt - adjust tension

- 5510C26 rpm sensor - r+r

- 4450B04 right front wheel r r

- 1016A20 single cam cover - r + r and replace gasket

- 5510C30 engine timing sensor - r+r

- 1048A10 air cleaner filtering element - replace

1.1 · Air Conditioner

- 1032B40 toothed-driven pulley (one) - r + r with timing belt removed

- 1032B14 toothed timing belt - r + r for timing adjustment or replacement versions with air conditioner

- 7055A42 front grille - r+r

- 1032D12 timing system protective cover(s) - r + r

- 1092A12 crankshaft pulley - r+r for versions with air conditioner

- 1092B40 air conditioner compressor/alternator drive belt - r + r

- 5510C26 rpm sensor - r+r

- 4450B04 right front wheel r r

- 1016A20 single cam cover - r + r and replace gasket

- 5510C30 engine timing sensor - r+r

- 1048A10 air cleaner filtering element - replace

1.2 8v

- 1032B40 toothed-driven pulley (one) - r + r with timing belt removed

- 1032B10 toothed timing belt - r + r for timing adjustment or replacement

- 7055A42 front grille - r+r

- 1032D12 timing system protective cover(s) - r + r

- 1092A10 Crankshaft services PULLEY - R.R.

- 1092B60 alternator drive belt - r + r

- 1092B64 alternator drive belt - adjust tension

- 5510C26 rpm sensor - r+r

- 4450B04 right front wheel r r

- 1016A20 single cam cover - r + r and replace gasket

- 5510C30 engine timing sensor - r+r

- 1048A10 air cleaner filtering element - replace

1.2 8v · Air Conditioner

- 1032B40 toothed-driven pulley (one) - r + r with timing belt removed

- 1032B14 toothed timing belt - r + r for timing adjustment or replacement versions with air conditioner

- 7055A42 front grille - r+r

- 1032D12 timing system protective cover(s) - r + r

- 1092A12 crankshaft pulley - r+r for versions with air conditioner

- 1092B40 air conditioner compressor/alternator drive belt - r + r

- 5510C26 rpm sensor - r+r

- 4450B04 right front wheel r r

- 1016A20 single cam cover - r + r and replace gasket

- 5510C30 engine timing sensor - r+r

- 1048A10 air cleaner filtering element - replace
