Turbo charger intercooler - r + r

Operation 1048B50 · Pressure air circuit

1.3 JTD 16v

Removing

Remove the car from the ramps.

- 4450B02 left front wheel r r

- 7055B90 Left front WHEEL ARCH LINER - R.R.

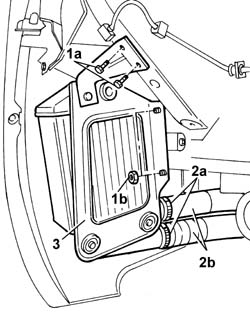

1. Undo the fixing bolts (1a) and the fixing nuts (1b).

2. Open the fastening bands (2a) and disconnect the air pipes (2b).

3. Release the supercharging air/air heat exchanger and remove it.

Refitting

Fit the supercharging air/air heat exchanger in place.

Tighten the fixing nuts and bolts, fit the pipes in place on the heat exchanger and tighten the fastening bands.

- 7055B90 Left front WHEEL ARCH LINER - R.R.

- 4450B02 left front wheel r r

Remove the car from the ramps.
