Introduction - ENGINE AIR SUPPLY CIRCUIT

1.1, 1.2 8v

The air intake circuit consists of various components which ensure that the air flow required by the engine in the various operating conditions is correctly directed.

1, Intake vent

2, Oil vapour recovery hose

3, Air filter casing

4, Inlet manifold

1.3 JTD 16v

STRUCTURE

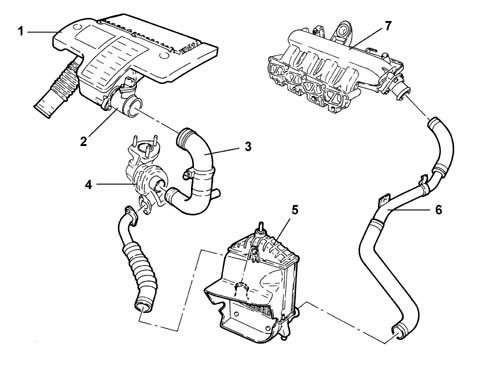

AIR SUPPLY SYSTEM

1 - Air filter complete with resonator

2 - Flow meter

3 - Connection sleeve to turbocharger

4 - Turbocharger

5 - Air-air heat exchanger (intercooler)

6 - Connecting sleeve between intercooler - air inlet manifold

7 - Air inlet manifold
