System cable bundle - r + r
Operation 1056B90 · Multi-point injection system (mpi)
1.6 16v
Removing
Place the car on a ramp.
Open the bonnet lid.
With the ignition key in the OFF position, disconnect the battery negative terminal.
- 1088E10 radiator cooling fan - r + r
Raise the car.

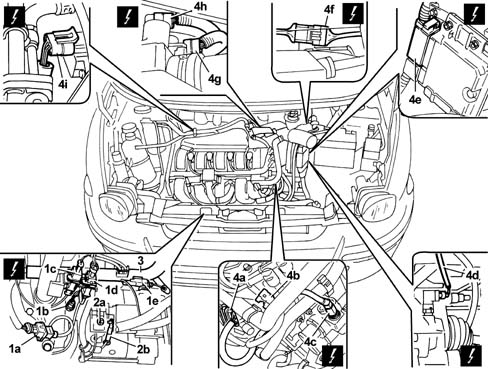

1. Disconnect the electrical connections (1a), (1b), (1c), (1d) and (1e).
Name Connector 1a Detonation sensor K50
Name Connector 1b Brake fluid level sensor (switch) K30
Name Connector 1c Timing sensor K47
Name Connector 1d RPM sensor K46
Name Connector 1e Alternator A10
2. Undo nut (2a) and disconnect the earth cable from starter motor (2b).
3. Open the wiring channel and take out the injection system wiring.
4. Disconnect electrical connections (4a), (4b), (4c), (4d), (4e), (4f), (4g), (4h) and (4i).
Name Connector 4a Injector N70
Name Connector 4b Ignition coil A30
Name Connector 4c Engine coolant temperature sensor K45
Name Connector 4d Speedometer sensor K84
Name Connector 4e Engine management ECU M10A
Name Connector 4f Front/engine junction D4
Name Connector 4g Throttle position sensor K56
Name Connector 4h Idle actuator N74
Name Connector 4i Integrated air temperature sensor K43
5. Release the wiring from the retaining collars and remove it.
Refitting
Position the engine wiring in the engine bay.
Connect the electrical connections.
Name Connector Integrated air temperature sensor K43
Name Connector Idle actuator N74
Name Connector Throttle position sensor K56
Name Connector Front/engine junction D4
Name Connector Engine management ECU M10
Name Connector Speedometer sensor K84
Name Connector Engine coolant temperature sensor K45
Name Connector Ignition coil A30
Name Connector Injector N70
Close the wiring channel after arranging the injection system wiring.
Connect the earth lead to the starter motor.
Connect the electrical connections to the front part of the engine.
Name Connector Detonation sensor K50
Name Connector Brake fluid level sensor (switch) K30
Name Connector Timing sensor K47
Name Connector RPM sensor K46
Name Connector Alternator A10
Lower the vehicle.
- 1088E10 radiator cooling fan - r + r
With the ignition key in stop position, connect the battery negative terminal.
Close the bonnet lid.
Remove the vehicle from the ramp.
