A30 Ignition coil

Make

Fiat

Model

Multipla Factory Service Manual

Year

1998–2010

Section

Starting - recharging › A30 Ignition coil

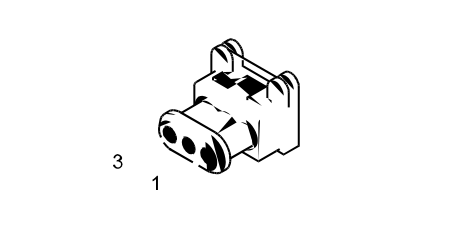

Connectors and pin-outsA30 Ignition coil

A30 Ignition coil

A030 – Engine

1.6 16v · BLUPOWER

Wiring	Colour
50 ENGINE	NERO

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
1	2,5	CN	X	D004	1
				N072A	1
				N072B	1
				N072C	1
				N072D	1
2	0,75	GN		M010B	59
3	0,75	LR		M010B	66

1.6 16v

Wiring	Colour
50 ENGINE	NERO

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
1	0,75	GN		M010B	59
2	2,5	CN	X	D004	1
				D081	3
3	0,75	LR		M010B	66

1.6 16v · BIPOWER

Wiring	Colour
50 ENGINE	NERO

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
1	2,5	CN	X	D004	1
				M016	14
2	0,75	GN		M010B	59
3	0,75	LR		M010B	66
