Introduction - DIESEL FUEL INJECTION

1.9 JTD 8V

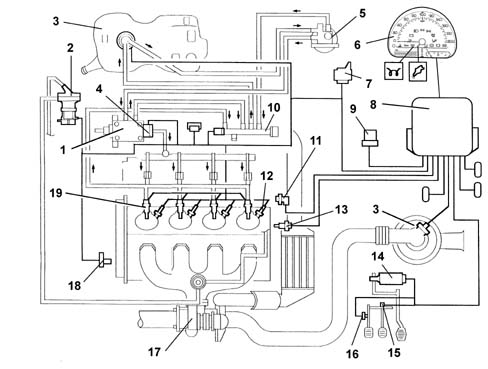

VIEW OF ASSEMBLY

1, Pressure pump

2, EGR modulating solenoid valve

3, Fuel tank

4, Pressure regulator

5, Fuel filter

6, On board instruments

7, Heater plugs electronic control unit

8, Electronic control unit

9, System relay feed

10, Distribution manifold (rail)

11, Rpm and T.D.C. sensor

12, Heater plug

13, Coolant temperature sensor

14, Accelerator pedal potentiometer

15, Brake pedal switch

16, Switch on clutch pedal

17, Turbocharger

18, Timing sensor

19, Injectors
