Timing belt pulley - r r

Make

Fiat

Model

Doblò Factory Service Manual

Year

2000–2010

Section

Timing system › Timing belt pulley - r r

EngineTiming belt pulley - r r

Timing belt pulley - r r

Operation 1032B61 · BELT TIMING SYSTEM

Removing

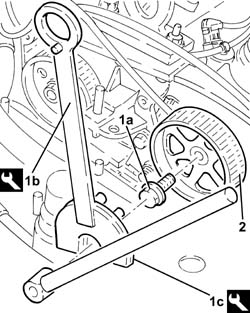

1. Undo the bolt (1a) of the driven pulley using the tools (1b) for counter-torque.

	Name	Country
1b	Support for counter-torque	1.860.831.000

	Name	Country
1c	Counter-torque	1.860.831.001

2. Remove the driven pulley.

Refitting

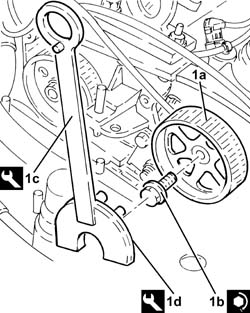

1. Refit toothed driven pulley (1a) in its seat and secure by tightening bolt (1b) to the specified torque using tools (1c) and (1d) for counter-torque.

	Fastening	Component	Ø	Value (daNm)
1b	Bolt	TIMING DUCT PULLEY	M12	(Camshaft side) 10.8 ÷ 13.2

	Name	Country
1c	Support for counter-torque	1.860.831.000

	Name	Country
1d	Counter-torque	1.860.831.001
