Fiat Doblò Factory Service Manual (2000-2010)08 · Engine
08 · Engine

COMPONENTS TRANSFER for half-finished engine

Make
Fiat
Model
Doblò Factory Service Manual
Year
2000–2010
Section
Engine and power unit › COMPONENTS TRANSFER for half-finished engine
EngineCOMPONENTS TRANSFER for half-finished engine

COMPONENTS TRANSFER for half-finished engine

Operation 1004E30 · ENGINE ASSEMBLY INSPECTION AND REPAIRS

Removing

- 1004D10 power unit (manual gearbox), removed, remove and re-build

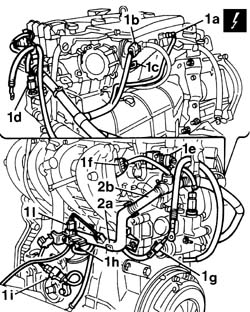

1. Disconnect electrical connections (1a), (1b), (1c), (1d), (1e), (1f), (1g), (1h), (1i) and (1l).

2. Open the wiring duct (2a) and remove the engine wiring (2b).

NameConnector
1aIntegrated air temperature sensorK43
NameConnector
1bIdle actuatorN74
NameConnector
1cThrottle position sensorK56
NameConnector
1dCoolant temperature sender unitK45
NameConnector
1eIgnition 'coilA30
NameConnector
1fInjectorN70
NameConnector
1gAlternatorA10
NameConnector
1hInsufficient engine oil pressure (switch) sensorK30
NameConnector
1iRPM sensorK46
NameConnector
1lDetonation sensorK50

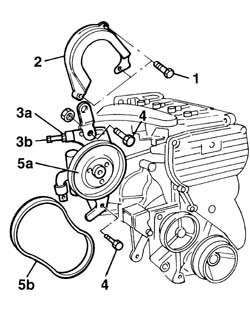

COMPONENTS TRANSFER for half-finished engine

1. Undo the belt plastic guard retaining bolts.

2. Remove the power steering pump belt guard.

3. Unscrew nut (3a) and adjustment screw (3b) to slacken belt tension. Then remove belt (3c).

4. Undo the two bolts fixing the power assisted steering pump.

5. Remove the power assisted steering pump (5a) complete with mounting brackets together with the drive belt (5b).

COMPONENTS TRANSFER for half-finished engine

1. Disconnect the supply connections for the spark plugs.

2. Undo the bolts fixing the ignition coils from the mounting bracket.

3. Remove the ignition coils complete with spark plug high tension leads.

COMPONENTS TRANSFER for half-finished engine

1. Undo the bolts (1a) fixing the oil filler pipe and the bolts (1b) fixing the oil dipstick.

2. Disconnect the oil vapour inlet pipe.

3. Remove the engine oil filler pipe.

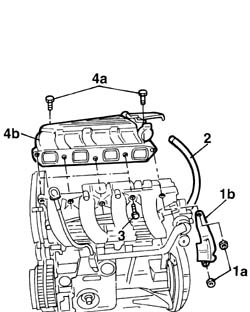

COMPONENTS TRANSFER for half-finished engine

1. Undo the fixing nuts (1a) and remove the protection (1b).

2. Disconnect the flexible engine coolant pipe from the rigid section fixed to the butterfly casing.

3. Undo the bolts fixing the air intake chamber to the inlet manifold.

4. Undo the bolts (4a) fixing the intake chamber to the camshaft housing, then remove the intake chamber (4b).

COMPONENTS TRANSFER for half-finished engine

1. Unscrew the retaining nuts.

2. Remove the wiring duct.

3. Undo the fixing bolts (3a) and remove the inlet manifold (3b) together with the oil dipstick (3c).

COMPONENTS TRANSFER for half-finished engine

1. Undo the retaining bolts.

2. Remove the timing belt single shield.

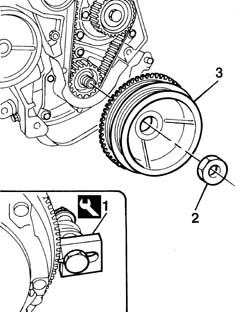

COMPONENTS TRANSFER for half-finished engine

1. Fit the engine flywheel retaining tool.

2. Undo the nut securing the crankshaft pulley.

3. Remove the crankshaft pulley.

NameCountry
1Counter-torque1.860.846.000
COMPONENTS TRANSFER for half-finished engine

1. Unscrew the retaining nuts.

2. Remove the exhaust manifold heat shield.

3. Unscrew the retaining nuts.

4. Remove the exhaust manifold together with the mounting bracket for the power assisted steering pump.

5. Recover the exhaust manifold seal.

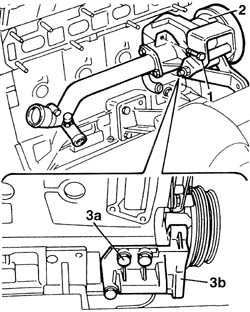

COMPONENTS TRANSFER for half-finished engine

1. Undo the bolts fixing the water pump mounting to the cylinder block/crankcase.

2. Remove the water pump complete with filler pipe.

3. Undo the fixing bolts (3a) and remove the alternator mounting (3b).

COMPONENTS TRANSFER for half-finished engine

1. Position the flywheel retainer.

2. Undo the fixing bolts (2a) and remove the clutch plate (2b).

NameCountry
1Counter-torque1.860.846.000
COMPONENTS TRANSFER for half-finished engine

1. Undo the retaining bolts.

2. Remove the engine flywheel together with the flywheel lock positioned previously.

COMPONENTS TRANSFER for half-finished engine

1. Undo and remove the engine oil pressure sender unit.

2. Undo the fixing bolt (2a) and remove the oil vapour separator (2b).

3. Undo the fixing bolt (3a) and remove the detonation sensor (3b).

COMPONENTS TRANSFER for half-finished engine

Refitting

Remove the half complete engine to be replaced from the overhauling stand.

Remove the engine mounting brackets and transfer them to the new half complete engine.

Using a suitable tool, lift the engine and fix it to the rotating stand to fit the missing component.

Fit the detonation sensor on the cylinder block/crankcase.

Position the vapour separator and fix it using the bolt.

Fit the engine oil pressure sender unit/

Position the flywheel retainer.

NameCountry
Counter-torque1.860.846.000

Fit the engine flywheel and tighten the fixing bolts to torque.

FasteningComponentØ

Value

(daNm)

BoltFLYWHEELM108.3

Align the driven disc for fitting the clutch assembly using the centering tool.

NameCountry
Clutch centering1.870.447.000

Fit the water pump complete with rigid pipe.

Tighten the bolts securing the water pump to the crankcase to torque.

FasteningComponentØ

Value

(daNm)

BoltCOOLANT PUMPM62.5

Fit the alternator mounting bracket and tighten the fixing bolts to torque.

FasteningComponentØ

Value

(daNm)

BoltALTERNATOR SUPPORTM62.5

Fit the exhaust manifold to the cylinder head.

Fit the power assisted steering pump mounting bracket on the exhaust manifold.

Tighten the nuts fixing the exhaust manifold to the cylinder head.

FasteningComponentØ

Value

(daNm)

BoltEXHAUST MANIFOLD/SM63

Fit the exhaust manifold heat shield.

Tighten the nuts fixing the bulkhead.

Fit the crankshaft pulley with its phonic wheel.

Tighten the pulley retaining nut to torque.

FasteningComponentØ

Value

(daNm)

NutCRANKSHAFT PULLEYM2019

Remove the flywheel lock.

Fit the timing belt single shield.

Fit the oil dipstick at the same time as the inlet manifold.

Fit the wiring duct on the inlet manifold.

Tighten the lower bolt fixing the oil dipstick and the nuts fixing the inlet manifold.

FasteningComponentØ

Value

(daNm)

NutINLET MANIFOLDM82.5

Fit the air intake casing.

Tighten the bolts and nuts securing the casing to the cylinder head extension.

FasteningComponentØ

Value

(daNm)

BoltINLET AIR DUCTM71.5

Tighten the bolts and nuts to the intake manifold.

Fit the shield and fix it using the nuts.

Connect the coolant pipe.

Fit the engine oil filler pipe.

Tighten the fixing bolts and connect the oil vapour inlet pipe.

Fit the ignition coils on the mounting bracket, tightening the bolts to torque.

FasteningComponentØ

Value

(daNm)

BoltIGNITION COIL/REELM60.9

Connect the supply connections for the coils to the spark plugs.

Position the power assisted steering pump complete with supports.

1. Fit the drive belt on the water pump and power assisted steering pump pullies.

2. Acting on the adjustment nut and bolt, tension the power assisted steering pump drive belt.

3. Using a dynamometer, check that the belt tension is correct.

4. Tighten the bolts fixing the power assisted steering pump brackets to torque.

Fit the pump plastic shield.

MeasurementValue
Power steering pump new belt tension (daN)32 - 45
FasteningComponentØ

Value

(daNm)

NutPOWER STEERING PUMP SUPPORT/BRACKETM105
COMPONENTS TRANSFER for half-finished engine

Position the electrical wiring and connect the electrical connections.

NameConnector
Detonation sensorK50
NameConnector
RPM sensorK46
NameConnector
Insufficient engine oil pressure (switch) sensorK30
NameConnector
AlternatorA10
NameConnector
InjectorN70
NameConnector
Ignition 'coilA30
NameConnector
Coolant temperature sender unitK45
NameConnector
Throttle position sensorK56
NameConnector
Idle actuatorN74
NameConnector
Integrated air temperature sensorK43

Position the part of the wiring concerned in the duct.

- 1004D10 power unit (manual gearbox), removed, remove and re-build
