FOG LIGHT BEAM - ADJUST

Operation 5540D38 · FOG LIGHTS

1.4 8v, 1.6 16v, 1.3 JTD 16V, 1.9 JTD 8V · from 12/03 · MY 2005

To be followed only for individual devices equipped with their own adjustment systems.

Position the vehicle complete with spare wheel, tools, fluids, fuel reserve and with the driver on board.

Check that the tyre inflation pressure is correct.

Place the headlamp alignment control switch in position "0".

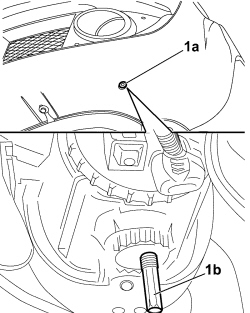

1. Switch the fog lights on and, working via the opening (1a) in the lower part of the bumper, adjust the adjustment pin (1b) to position the headlamp so that on a screen positioned 10 metres away the demarcation line is lower than the reference centre of the fog lights equal to the value recommended for the dipped headlamp light beam for the vehicle in question plus 1/3 of the height of the centre of the fog light from the ground.

If the angle is such that the beam hits the ground before the screen, correct the alignment upwards so that the demarcation line hits the ground at the point where the screen is, i.e. 10 metres from the front of the vehicle.

On a horizontal plan the beams should be aligned as recommended for the main beam headlamps, with the exception of pre-adjusted headlamps.
