R.R. FRONT SIDE DOOR
Removing
Disconnect the battery negative terminal.
Work with the aid of a second operator. When working, take care not to damage the painting parts of the body and door.

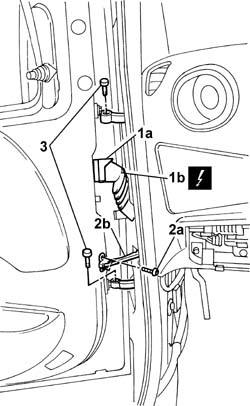

1. Open lever (1a) and disconnect the electrical connection of door (1b).
| Name | Connector | |
|---|---|---|
| 1b | Front left door connection | See D30 FRONT LEFT DOOR CONNECTION ( REAR ) |
| Name | Connector | |
|---|---|---|
| 1b | Front right door connection | See D031 REAR/PASSENGER FRONT DOOR COUPLING |
2. Undo bolts (2a) securing door opening limiter (2b).
3. Undo the bolts securing the door hinges.
Remove the door and place on a suitable stand.
Refitting
Check the door is undamaged.
Touch up the paintwork if necessary.
Fit the door and tighten the door hinge retaining bolts to torque.
| Fastening | Component | Ø | Value (daNm) | |
|---|---|---|---|---|
| Bolt | FRONT SIDE DOOR HINGES | M8 | 2.4 |
Tighten the bolts securing the door opening limiter, door side, to torque.
| Fastening | Component | Ø | Value (daNm) | |
|---|---|---|---|---|
| Bolt | FRONT DOOR OPENING LIMITER | M6 | (door) 1.2 |
Connect the electrical connector.
| Name | Connector | |
|---|---|---|
| Front left door connection | See D30 FRONT LEFT DOOR CONNECTION ( REAR ) |
| Name | Connector | |
|---|---|---|
| Front right door connection | See D031 REAR/PASSENGER FRONT DOOR COUPLING |
Connect the battery negative terminal.
