Load compartment roof flap

Operation 7210L92 · Specific parts for commercial vehicle

Doblò trim level

Removing

- 7040H80 parcel rack

1. Operate lever (1a) and release support beam (1b).

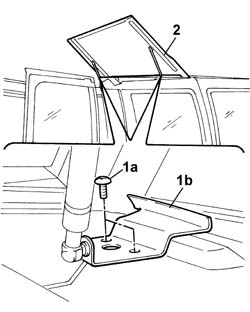

1. Undo retaining bolts (1a), body side, securing the joints of butterfly window (1b).

2. Remove the butterfly window assembly and place on a stand.

All versions

Refitting

Check that the butterfly window is undamaged.

Screw in the bolts securing the joint on the body side without tightening.

Reposition the support beam.

1. Loosen the bolts (1a) fixing the butterfly window catch (1b).

1. Loosen the bolts (1a) securing the butterfly window catch (1b)

Adjust butterfly window position.

When adjustment is complete, tighten the bolts securing the catch, striker and joints.

Doblò trim level

- 7040H80 parcel rack
