Wiring diagrams and electrical functionsSupply - wiring diagram

SUPPLY - WIRING DIAGRAM

2.0 JTS

Wiring diagram

Components

Component code	Name	Assembly reference
A1	BATTERY (+)	Op. 5530B BATTERY AND LEADS
B1	JUNCTION UNIT
B1	JUNCTION UNIT	Op. 1080B EXHAUST EMISSION CONTROL SYSTEM
B1	JUNCTION UNIT	Op. 5505A MULTI-FUNCTION COMPONENTS
B2	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A MULTI-FUNCTION COMPONENTS
B5	MAXI FUSE-1 BOX
B99	MAXIFUSE BOX ON BATTERY	Op. 5530B BATTERY AND LEADS
C2	BATTERY EARTH ON ENGINE ( BATTERY NEGATIVE )
C3	BATTERY EARTH ON BODYSHELL ( BATTERY NEGATIVE )
H1	IGNITION SWITCH	Op. 5520A IGNITION SWITCH

3.2 V6

Wiring diagram

Components

Component code	Name	Assembly reference
A1	BATTERY (+)	Op. 5530B BATTERY AND LEADS
B1	JUNCTION UNIT
B1	JUNCTION UNIT	Op. 1080B EXHAUST EMISSION CONTROL SYSTEM
B1	JUNCTION UNIT	Op. 5505A MULTI-FUNCTION COMPONENTS
B2	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A MULTI-FUNCTION COMPONENTS
B5	MAXI FUSE-1 BOX
B99	MAXIFUSE BOX ON BATTERY	Op. 5530B BATTERY AND LEADS
C2	BATTERY EARTH ON ENGINE ( BATTERY NEGATIVE )
C3	BATTERY EARTH ON BODYSHELL ( BATTERY NEGATIVE )
H1	IGNITION SWITCH	Op. 5520A IGNITION SWITCH

1.8 T.SPARK

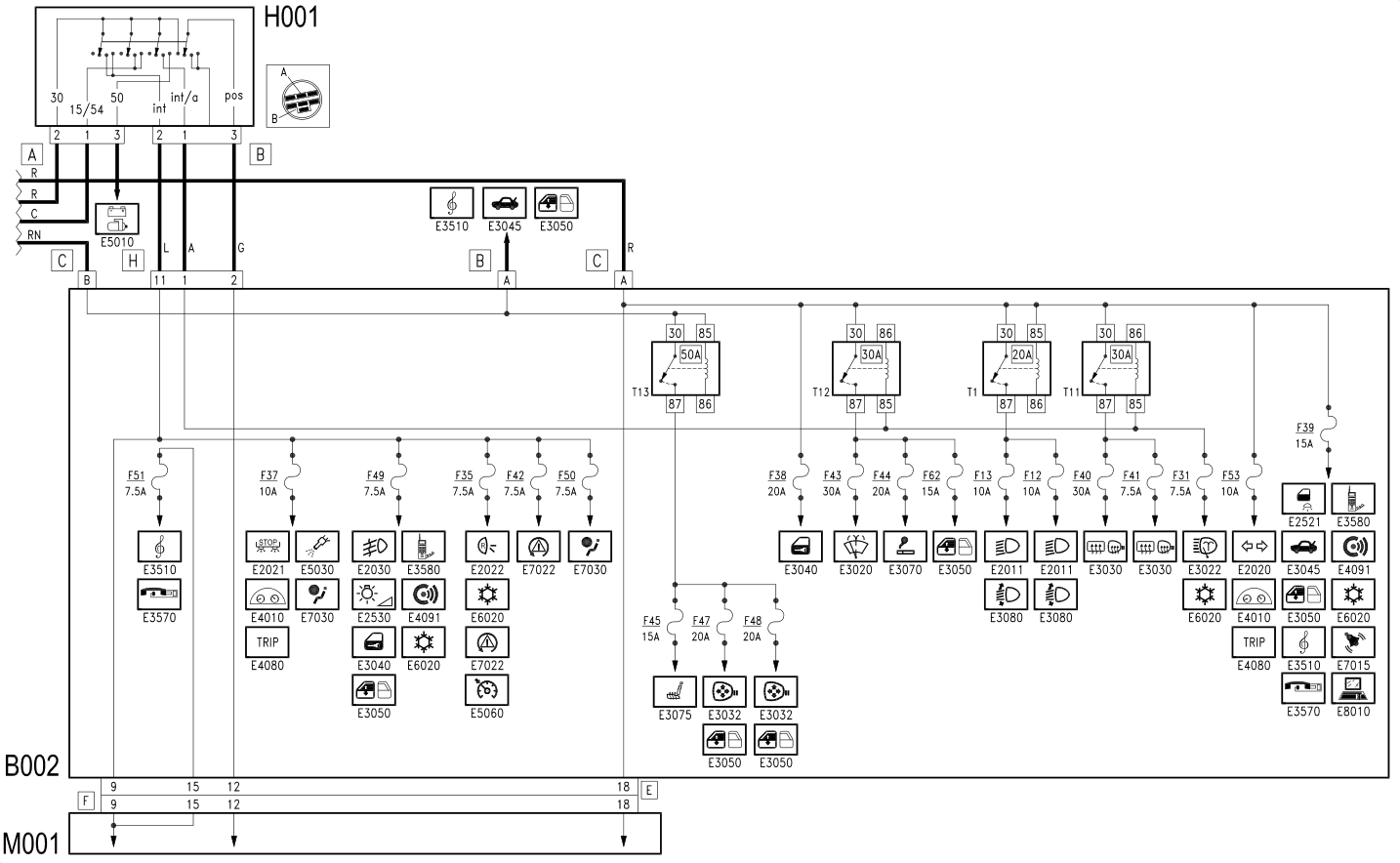

Wiring diagram

Components

Component code	Name	Assembly reference
A1	BATTERY (+)	Op. 5530B BATTERY AND LEADS
B1	JUNCTION UNIT
B1	JUNCTION UNIT	Op. 1080B EXHAUST EMISSION CONTROL SYSTEM
B1	JUNCTION UNIT	Op. 5505A MULTI-FUNCTION COMPONENTS
B2	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A MULTI-FUNCTION COMPONENTS
B5	MAXI FUSE-1 BOX
B99	MAXIFUSE BOX ON BATTERY	Op. 5530B BATTERY AND LEADS
C2	BATTERY EARTH ON ENGINE ( BATTERY NEGATIVE )
C3	BATTERY EARTH ON BODYSHELL ( BATTERY NEGATIVE )
H1	IGNITION SWITCH	Op. 5520A IGNITION SWITCH

1.9 JTD 16V

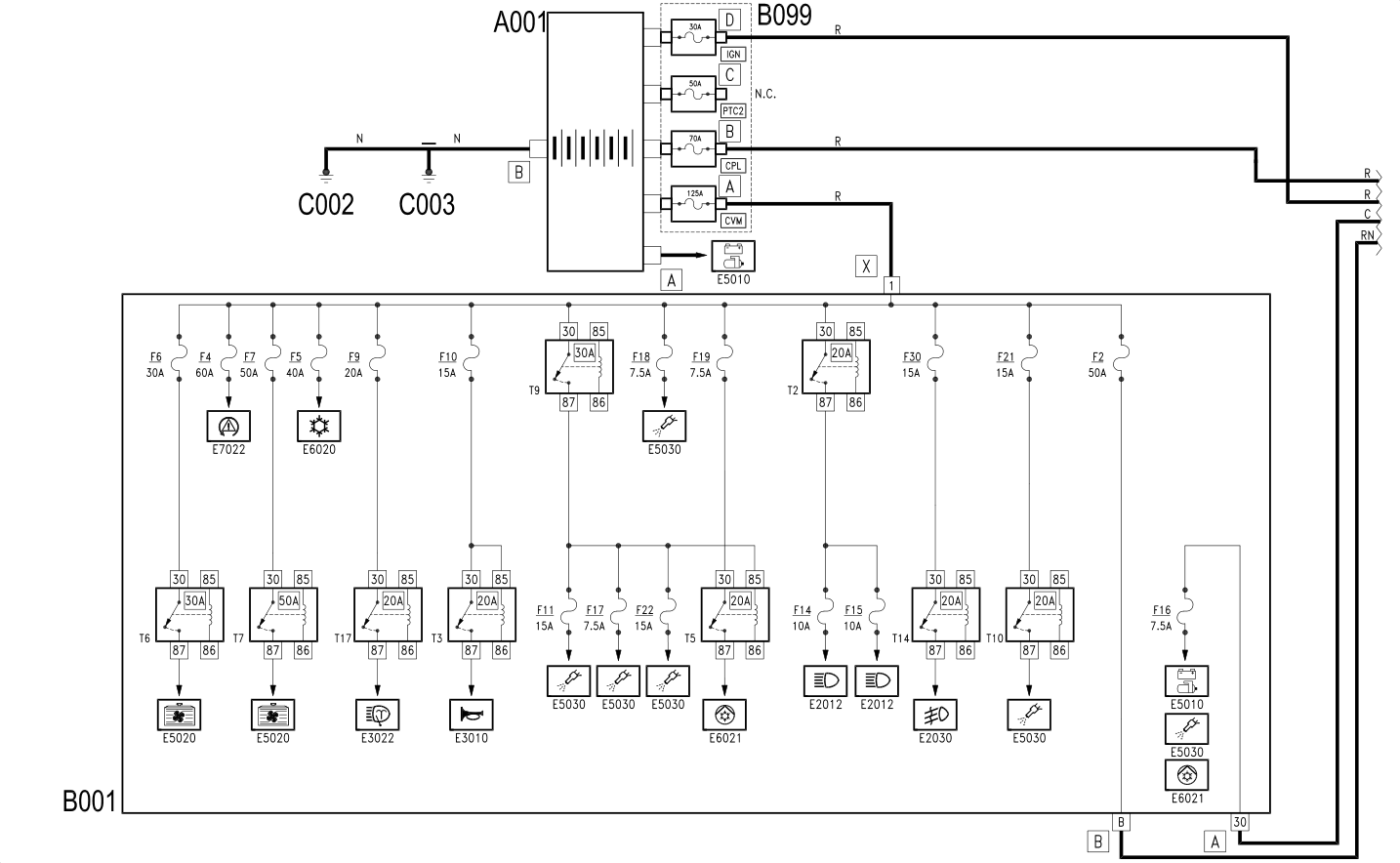

Wiring diagram

Components

Component code	Name	Assembly reference
A1	BATTERY (+)	Op. 5530B BATTERY AND LEADS
B1	JUNCTION UNIT
B1	JUNCTION UNIT	Op. 1080B EXHAUST EMISSION CONTROL SYSTEM
B1	JUNCTION UNIT	Op. 5505A MULTI-FUNCTION COMPONENTS
B2	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A MULTI-FUNCTION COMPONENTS
B5	MAXI FUSE-1 BOX
B99	MAXIFUSE BOX ON BATTERY	Op. 5530B BATTERY AND LEADS
C2	BATTERY EARTH ON ENGINE ( BATTERY NEGATIVE )
C3	BATTERY EARTH ON BODYSHELL ( BATTERY NEGATIVE )
H1	IGNITION SWITCH	Op. 5520A IGNITION SWITCH
