Alfa Romeo GT Factory Service Manual (2003-2010)21 · Connectors and pin-outs
21 · General

C3 Battery earth on bodyshell

Make
Alfa Romeo
Model
GT Factory Service Manual
Year
2003–2010
Section
Earths › C3 Battery earth on bodyshell
Connectors and pin-outsC3 Battery earth on bodyshell

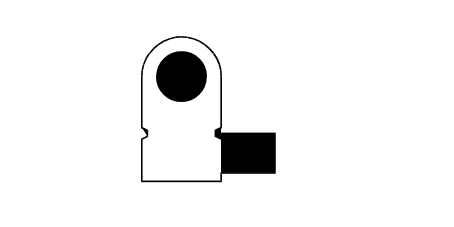

C3 Battery earth on bodyshell

1.9 JTD 16V

C3 Battery earth on bodyshell
WiringColour
40 BATTERY NEGATIVE
PinCableDestination
Sec.ColourNodeConnect.Pin
35NXA1B
C2

1.8 T.SPARK, 2.0 JTS, 3.2 V6

C3 Battery earth on bodyshell
WiringColour
40 BATTERY NEGATIVE
PinCableDestination
Sec.ColourNodeConnect.Pin
16NXA1B
C2
