BrakesFront disc brakes - r.r.

FRONT DISC BRAKES - R.R.

Operation 3310A14 · FRONT DISC BRAKES

1.8 T.SPARK, 2.0 JTS, 1.9 JTD 16V

Removing

Position the vehicle on the ramp

Ensure that the ignition key is in the OFF position, then disconnect the negative battery terminal (-).

	Name	Connector
	Battery	See A1B BATTERY ( BATTERY NEGATIVE )

Proceed with removal

Op. 4450B12 FRONT OR REAR WHEELS (TWO) - R+R

Proceed with the removal

(Right and left sides).

Op. 3330E10 L/H OR R/H HOSE (ONE) TO FRONT BRAKE CALIPERS - R+R

1. Remove the spring fixing the brake calipers to the brackets.

2. Disconnect the electrical connections for the brake pad wear cables.

3. Remove the protective plugs (3a), undo the bolts (3b) and remove the front brake calipers (3c) with the pads.

	Name	Connector
2	Left brake pad wear sensor switch	See K20 LEFT BRAKE PAD WEAR SENSOR SWITCH ( FRONT )

1. Undo the bolts (1a) and remove the front brake caliper brackets (1b).

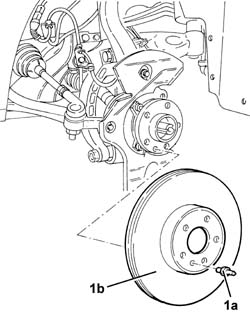

1. Unscrew the bolt (1a) and remove the front brake discs (1b).

Refitting

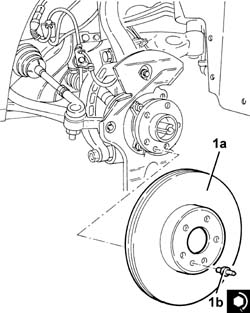

1. Place the front brake discs (1a) back in their seatings and secure them tightening the bolt (1b) to the recommended torque.

	Fastening	Component	Ø	Value (daNm)
1b	Pin	FRONT BRAKE DISC.	M8	(Wheel hub side) 1.0 ÷ 1.4

Fastening

Component

Value

(daNm)

FRONT BRAKE DISC.

(Wheel hub side) 1.0 ÷ 1.4

1. Place the front brake discs (1a) back in their seatings and secure them tightening the bolt (1b) to the recommended torque.

	Fastening	Component	Ø	Value (daNm)
1b	Bolt	FRONT BRAKE CALIPER BRACKET	M12	(Front steering knuckle side) 11.1 ÷ 12.3

Fastening

Component

Value

(daNm)

Bolt

FRONT BRAKE CALIPER BRACKET

M12

(Front steering knuckle side) 11.1 ÷ 12.3

When fitting a new brake caliper, the latter is supplied to Parts with no brake fluid; it is therefore necessary to operate as follows:

slacken the bleed screw;

insert the end of a transparent pipe into the bleed screw hole;

using an ordinary container with the recommended brake fluid, insert brake fluid into the caliper until air bubbles emerge from the threaded hole where the hose is connected;

tighten the bleed screw.

1. Place the front brake calipers (1a) complete with pads in their seatings, fix them tightening the bolts (1b) to the specified torque and fit the protective plugs (1c).
