FRONT DISC BRAKES
CONSTRUCTION FEATURES
The car is fitted with ventilated discs and Theves floating cast iron calipers with automatic play take-up
A multipolar magnetic ring fitted to the inner hub bearing race indicates wheel movement to the active ABS sensor [
Characteristic of working principle 3340 ANTI-LOCK BRAKE SYSTEM (ABS)
]

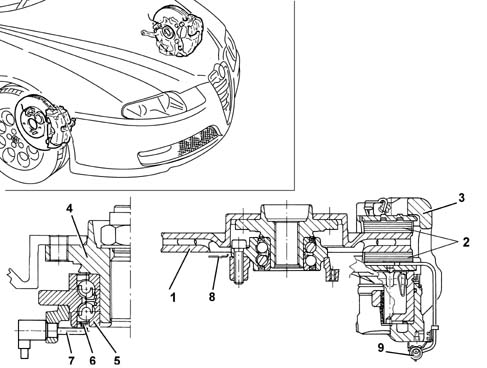

1 - Brake disc
2 - Brake pads
3 - Brake caliper
4 - Hub
5 - Hub bearing
6 - Magnetic ring
7 - Active ABS sensor
8 - Guard
9 - Pad wear warning light connection
