Front brake discs - r+r with brake calipers removed
- Make
- Alfa Romeo
- Model
- GT Factory Service Manual
- Year
- 2003–2010
- Section
- Disc brakes › Front brake discs - r+r with brake calipers removed
BrakesFront brake discs - r+r with brake calipers removed
FRONT BRAKE DISCS - R+R WITH BRAKE CALIPERS REMOVED
Removing
1. Undo the bolts (1a) and remove the front brake caliper brackets (1b).
1. Unscrew the bolts (1a) and remove the front brake discs (1b).
Refitting
1. Refit the front brake discs (1a) in their seatings and tighten the bolts (1b) to the recommended torque.
| Fastening | Component | Ø | Value (daNm) | |
|---|---|---|---|---|
| 1b | Pin | FRONT BRAKE DISC. | M8 | (Wheel hub side) 1.0 ÷ 1.4 |
1. Place the front brake caliper brackets (1a) back in their housings and fix them tightening the bolts (1b) to the recommended torque.
| Fastening | Component | Ø | Value (daNm) | |
|---|---|---|---|---|
| 1b | Bolt | FRONT BRAKE CALIPER BRACKET | M12 | (Front steering knuckle side) 11.1 ÷ 12.3 |
Removing

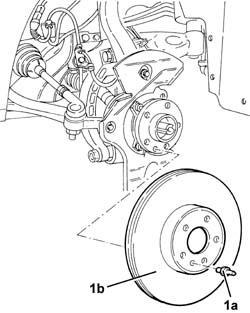

1. Unscrew the pin (1a) and remove the front brake disc (1b).
Refitting

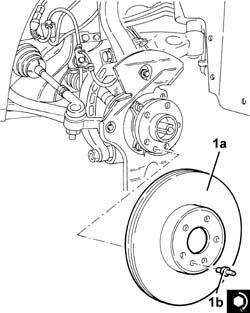

1. Refit the front brake disc (1a) in its seating and tighten its bolt (1b) to the specified torque.
| Fastening | Component | Ø | Value (daNm) | |
|---|---|---|---|---|
| 1b | Pin | FRONT BRAKE DISC. | M8 | (Wheel hub side) 1.0 ÷ 1.4 |
