R.R. FRONT BUMPER

Operation 7210E10 · EXTERNAL PARTS

Removing

Op. 4450B02 LEFT FRONT WHEEL R R

Op. 4450B04 RIGHT FRONT WHEEL R R

Op. 7055B54 UNDER-ENGINE GUARD - R R

Op. 7055B64 LH OR RH REFLECTOR(ONE) ON REAR BUMPERS - R R

Op. 7055B65 ENGINGE BAY DUSTGUARD PROTECTION IN LEFT FRONT WHEEL ARCH R R

Op. 7055B90 LEFT FRONT WHEEL ARCH LINER - R.R.

Op. 7055B91 RIGHT FRONT WHEEL ARCH LINER - R.R.

Lower the vehicle and open the bonnet lid.

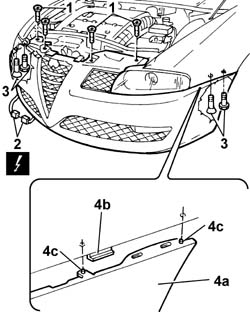

1. Undo the upper central bumper bolts.

Raise the car.

2. Prise up from the retainer and disconnect the braid electrical connection from the front turn signals.

3. Working from both sides of the car, undo the bumper''s side bolts.

4. Remove the bumper (4a) releasing it from the side retainers (4b) and releasing the centering pins (4c).

Lower the vehicle.

1. Prise out the buffers if necessary.

If necessary,

Op. 7205E10 STRIPPING FRONT BUMPER

Refitting

Check that the front bumpers are undamaged.

If carried out,

Op. 7205E10 STRIPPING FRONT BUMPER

Refit the buffers if they were removed.

Position the bumper attaching the side retainers and the centering pins.

Screw in the upper bumer bolts without tightening.

Tighten the side bolts checking the alignment of the bumper and the wing at the sides.

Tighten the top central bumper retaining bolts.

Connect the electrical connections and fit to the retainer.

Op. 7055B91 RIGHT FRONT WHEEL ARCH LINER - R.R.

Op. 7055B90 LEFT FRONT WHEEL ARCH LINER - R.R.

Op. 7055B64 LH OR RH REFLECTOR(ONE) ON REAR BUMPERS - R R

Op. 7055B65 ENGINGE BAY DUSTGUARD PROTECTION IN LEFT FRONT WHEEL ARCH R R

Op. 7055B54 UNDER-ENGINE GUARD - R R

Op. 4450B04 RIGHT FRONT WHEEL R R

Op. 4450B02 LEFT FRONT WHEEL R R.
