INTRODUCTION - PETROL FUEL INJECTION SYSTEM

3.2 JTS

Introduction

The 3.2 V6 JTS engine features a fuel feed system with a high pressure pump for direct injection.

An electronic control system supervises and governs all engine parameters to optimise performance and fuel consumption by means of a real-time response to different service conditions.

The system is managed by a single control unit - a Bosch Motronic MED 7.6.2. with motorised throttle - which controls both the ignition and the sequential, phased injection.

Depending on the signals received from numerous sensors, the control unit controls the injectors connected to it managing the following systems:

- fuel supply;

- ignition;

- high pressure fuel pump control;

- air supply;

- accelerator pedal;

- engine cooling;

- exhaust with catalytic converters controlled by four Lambda sensors;

- fuel vapour recirculation.

The control unit for this JTS engine manages the operation of the high pressure fuel pump controlling the flow rate regulator and monitoring the pressure reached by means of a sensor located on the right bank rail.

The throttle body is also controlled electronically by the control unit: the throttle opening is calculated in accordance with a specific logic inside the engine management control unit. In this way, in addition to there being no mechanical connection between the accelerator pedal and the throttle casing, the control unit is capable of managing the actual quantity of fuel required at any time the engineis operating controlling the pressure of the fuel and the starting point of the injection.

The control unit also controls the four phase transformers to ensure optimum engine response in all operating conditions.

The main system functions are essentially as follows:

- self-learning;

- system self-adaptation;

- recognition of the Alfa Romeo CODE (immobilizer);

- cold starting check control;

- control of combustion - Lambda sensors;

- detonation control;

- control of enrichment during acceleration;

- fuel cut-off when accelerator pedal is released;

- fuel vapour recovery;

- control of maximum rpm;

- fuel pump control;

- connection with climate control system;

- cylinder position recognition;

- control of optimum injection time for each cylinder;

- adjustment of ignition advance;

- idle speed management (also dependent on battery voltage);

- fan control;

- connection with ABS/VDC control unit;

- fuel system diagnostics;

- phase transformer management.

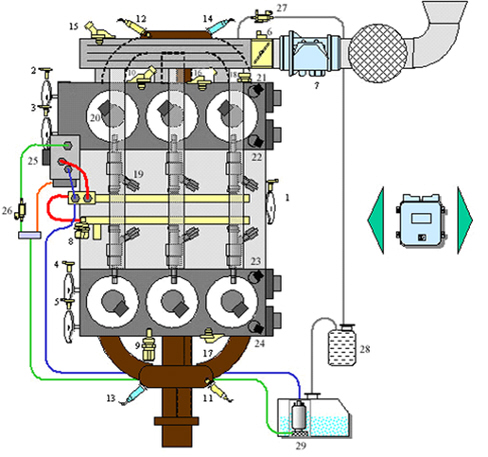

Injection system diagram

1. Rpm and TDC sensor

2. Left cylinder head exhaust camshaft timing sensor

3. Left cylinder head inlet camshaft timing sensor

4. Right cylinder head inlet camshaft timing sensor

5. Right cylinder head exhaust camshaft timing sensor

6. Throttle body

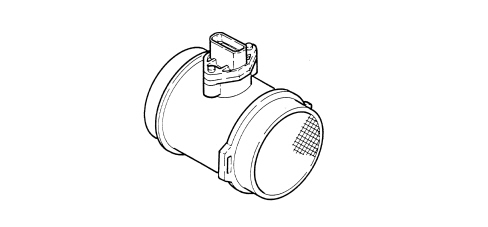

7. Flow meter (with intke air temperature sensor)

8. Fuel pressure sensor

9. Oil level and temperature sensor

10. Water temperature sensor

11. Lambda sensor upstream of pre-catalyzer, right bank

12. Lambda sensor upstream of pre-catalyzer, left bank

13. Lambda sensor downstream of catalyzer, right bank

14. Lambda sensor downstream of catalyzer, left bank

15. Absolute pressure sensor

16. Detonation sensor, left bank

17. Detonation sensor, right bank

18. Oil pressure sensor

19. Injectors

20. Coils

21. Exhaust camshaft phase transformer solenoid, left cylinder head

22. Inlet camshaft phase transformer solenoid, left cylinder head

23. Inlet camshaft phase transformer solenoid, right cylinder head

24. Exhaust camshaft phase transformer solenoid, right cylinder head

25. Flow rate regulator

26. Shut-off solenoid valve

27. Fuel vapour solenoid valve

28. Canister

29. Low pressure pump in tank

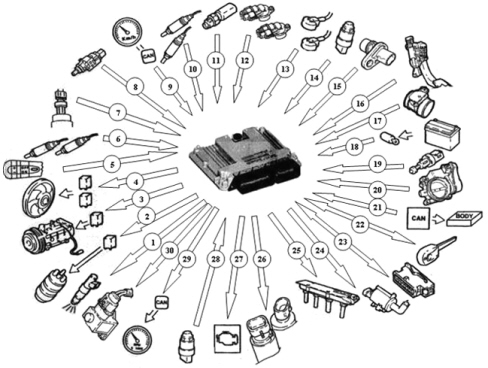

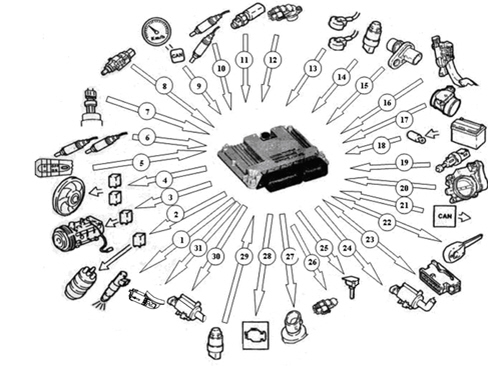

Diagram showing information entering/leaving the engine management control unit

1. Injectors

2. Fuel pump

3. Air conditioning compressor

4. Engine cooling fan

5. Cruise control system control (4 digital inputs)

6. Lambda sensor downstream of the catalytic converter

7. Air conditioning system gas pressure linear sensor

8. Brake pedal switch

9. Speedometer signal detected by CAN

10. Lambda sensor upstream of the catalytic converter

11. Coolant temperature sensor

12. Timing sensors

13. Detonation sensors

14. Fuel pressure sensor

15. Rpm sensor

16. Accelerator pedal potentiometer

17. Air flow meter with built in air temperature sensor

18. Battery

19. Clutch pedal switch

20. Motorized throttle body

21. CAN line

22. Alfa CODE

23. Diagnostic socket

24. Fuel vapour recirculation solenoid valve

25. Ignition coils

26. Absolute pressure sensor

27. Phase transformer control valves

28. Injection warning light (MIL EOBD amber yellow)

29. Oil pressure sensor

30. Shut-off solenoid valve

31. Hhigh pressure flow rate regulator

Bosch MED 7.6.2 control unit operating logics

Management of the phase transformers

The variable timing on the 3.2 JTS engine is the continuous regulation type and is applied to both the inlet camshafts and the exhaust camshafts.

The overall adjustment range (inlet and exhaust) is 50 degrees and the controls between the inlet and exhaust sides are completely independent of one another.

With the engine idling, both camshafts are in the "park" position; in this situation the exhaust camshafts are fully advanced and the inlet camshafts fully delayed and they remain like this during starting. This timing configuration guarantees the minimum crossover between the inlet and exhaust valves.

The pins that lock the camshafts in the basic position ensure that they are in the correct position on starting and that there is no noise due to the uncontrolled rotation of the rotor in relation to the stator. To allow the movement of the phase transformer a certain operating pressure must be reached in order to release the pin locking the transformer in the basic position and allowing movement.

Depending on the engine position, it is possible from the basic position to control the advance of the inlet camshafts and the delay of the exhaust camshafts within a maximum rotation range of 50 degrees for each shaft; what is of fundamental importance is that this system makes it possible to control all the intermediate positions for the shafts within the above mentioned range so that the best engine working conditions can be produced for all speed and load conditions.

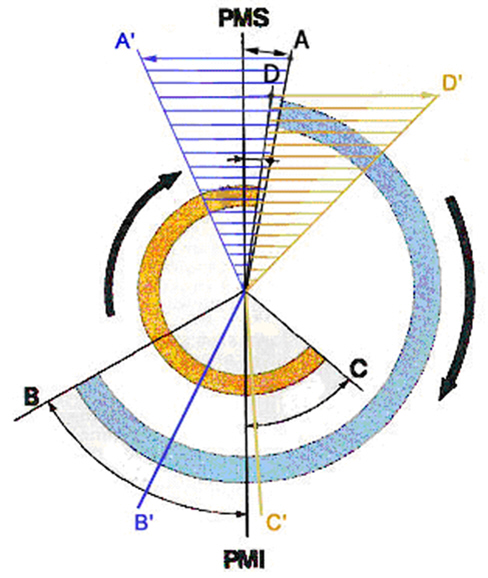

Timing diagram variation

A - Inlet shaft basic fitting position (completely delayed)

B - Exhaust shaft basic fitting position (completely advanced)

A'' - Maximum rotation in relation to inlet shaft position

B'' - Maximum rotation in relation to exhaust shaft position

Thanks to the intervention of the phase transformers, the timing diagram can be altered as can be seen in the diagram above; in particular, the opening advance for the inlet valves can move inside the area defined by the line A and the line A'', whilst the closing delay for the exhaust valves can move inside the area definied by the line B and the line B''.

The action of the phase transformers is therefore principally understood as controlling the opening advance of the inlet valves and the closing delay of the exhaust valves. Obviously the variation in the opening advance of the inlet valves also produces a variation in their closing point in the same way as the variation in the closing delay of the exhaust valves also produces a variation in the opening point.

The maps used for the management of the timing diagram are a compromise between the opening advance and closing delay for both the inle and exhaust valves in terms of ensuring optimum consumption, performance and emissions.

The control unit, depending on the information received concerning the following:

- the engine temperature;

- the engine speed;

- the engine load;

- the position of the accelerator pedal;

- the Lambda sensor signals.

manages the phase transformers independently, continuously controlling the four proportional control solenoid valves to ensure careful management of the timing for the best control of the emissions and the torque supplied by the engine.

Alfa code recognition

The moment the control unit receives the ignition ON signal it converses with the Body Computer, via the ALFA CODE function, to give the enablement for starting.

Self-learning

- installation of a new injection control unit,

- installation of a new throttle body actuator,

- removing-refitting or replcing the rpm/flywheel sensor for the recognition of misfire.

The learning values for the throttle body are maintained with the battery disconnected.

The learning values for the flywheel for recognizing misfire, on the other hand, are lost.

System self-adjustment

The control unit is equipped with a self-adjustment function that is designed to recognize the changes that take place in the engine due to the processes of bedding in and ageing of both the components and the engine itself in time.

There are two adaptive functions depending on the two intervention plans: minimum and utilization.

Cold starting check

In cold starting conditions the mixture is naturally weakened causing low evaporation of the fuel at low temperatures and increased viscosity of the engine lubricant.

The electronic control unit detects this condition and corrects the injection time on the basis of:

- coolant temperature;

- intake air temperature;

- battery voltage;

- engine rpm.

The ignition advance is determined solely on the basis of rpm and coolant temperature.

During the start-up stage, the control unit sends an initial simultaneous injection command to all injectors (full-group injection). Once cylinder phase has been detected, normal phased sequential operation can begin.

Whilst the engine is warming up, the control unit operates the throttle body to regulate the quantity of air required to ensure that the engine speed is sustained.

The rotation speed is made to decrease with increasing temperature until the rated level is reached with the engine warm.

Control of combustion - lambda sensors

In EOBD systems the Lambda sensors are located upstream of the catalyzer system and downstream of the catalyzer.

The upstream sensors control the mixture strength and are known as the upstream sensors closed loop. The sensors downstream of the catalytic converter are used to for converter diagnostics and to fine-tune 1st loop control parameters.

The adaptation of the second loop is designed to recover both production losses and the slackening that occurs in the upstream sensors as a result of ageing and pollution.

This control is known as the 2nd downstream sensors closed loop.

Detonation control

The control unit can delay ignition, selectively at the cylinder where it is required, depending on a combination of values received by the detonation and timing sensors and:

- reduces the ignition advancesin steps of 3° up to a maximum of 12°;

- updates the threshold value to take into account background noise and the ageing of the engine.

During acceleration the control unit uses a higher threshold for the increased engine noise.

When the detonation disappears, the control unit increases the ignition advance in steps of 0.75 degrees until the recovery is complete.

The control unit with a self-adaptive function:

- stores advance reductions that are repeated continuously;

- adjusts mapping to the various different engine service conditions.

RECOVERY

If the detonation sensor is faulty, an ignition advance delay that varies according to the engine speed or temperature is implemented. Maximum ignition delay is always less than 6° engine.

Control of enrichment during acceleration

In cases of high acceleration demand, the control unit modifies injection time and throttle position.

RECOVERY

The control unit replaces the signal coming from the faulty air flow meter with the signal for the potentiometer built-into the throttle casing actuator.

Fuel cut-off when the accelerator pedal is released

The control unit with:

- detection of idling status;

- rpm above a certain threshold;

deactivates the fuel injection in the following cases:

- engine speed below 1500 rpm;

- engine temperature below 40 °C;

Before reaching idling level, the rpm descent rate is assessed. If it is above a certain level, the fuel injection is partly reactivated according to a logic that involves the gentle accompaniment of the engine at idle speed.

Once idling speed has been reached, normal functions are resumed.

Fuel vapour recovery

The fuel vapours, coming from the active charcoal filter (canister), are sent to the intake ducts to be burnt.

This takes place by means of a solenoid valve operated by the control unit which alternates phases in which it is open (canister scavenging stage) with phases in which it is closed (carburation learning stage).

During the opening phases, the solenoid valve opening duty-cycle is regulated by the control unit to eliminate the fuel vapours without altering the engine carburation.

Control of maximum rpm

According to the rpm level reached by the engine, the control unit:

- beyond 7200 rpm removes the supply from the injectors (dynamic control of maximum speed)

- after having checked the maximum speed with the dynamic control, carries out the maintenance by adjusting the position of the motorized throttle independently of the request coming from the accelerator pedal potentiometer (idle static control); this makes it possible to control the maximum speed keeping oscillations from the fuel cut off to a minimum.

Fuel pump control

The control unit:

- supplies the electric fuel pump with the ignition ON (for 5 seconds)

- supplies the pump with the ignition in the starting position and the engine speed above 25 rpm;

- interrupts the supply to the pump with the ignition OFF or the engine speed below 25 rpm

Connection with climate control system

The compressor takes up power from the engine when the climate control system is activated.

In idling conditions, the control unit adapts the air flow rate to the new power requirements with the advantage of maintaining optimum driveability.

The control unit manages the exclusion of the compressor:

- if there is insufficient climate control system gas pressure;

- above a set engine coolant temperature threshold (117 °C);

- during starting;

- in low rev conditions.

There is no exclusion for maximum power request.

Recognition of cylinder position

The control unit recognizes which cylinder is in the explosion stroke by means of the engine rpm and TDC sensor and the timing sensors: it controls the injection and ignition sequence for the cylinder in a sequential, timed fashion.

Check on optimum injection time for each cylinder

The injection start angle varies from –250° to –340° to allow a homogonized mixture and optimum combustion in all engine operating conditions.

Idle speed management

The control unit detects idling status when the accelerator pedal is released.

The control unit regulates the idle speed value depending on the engine temperature and battery voltage.

Fan control

The control unit controls the engagement of the fan depending on the temperature of the coolant:

- temperature for engaging first speed: 98 °C;

- temperature for engaging second speed: 106 °C.

If the air conditioning system is on, the control unit controls the engagement of the first speed.

If there is no coolant temperature signal, the control unit implements the recovery function engaging the second speed until the error disappears.

Before the activation of the fans, the throttle opening is increased to prevent the engine revs from falling.

Connection with abs/vdc control unit

The dialogue between the engine management control unit and the ABS/VDC control unit takes place via the C-CAN line.

If the wheels are slipping (signalled by the ABS/VDC control unit), the engine management control unit reduces the engine torque by:

- reducing the ignition advance;

- reducing the throttle opening angle;

- reducing the injection time.

2.2 JTS

OPERATION OF THE INJECTION-IGNITION SYSTEM

The Bosch Motronic MED7.6.1 system with a motorized throttle belongs the category of systems integrated with:

- ignition,

- phased sequential electronic injection.

The control unit controls the air flow rate at the idling speed set by the electronic throttle.

The control unit controls the ignition time, with the benefit of maintaining smooth engine operation even when environmental and applied load parameters change.

The control unit controls and manages injection so that stoichiometric air/fuel ratio is always within optimum limits.

The main system functions are essentially as follows:

- self-learning;

- system self-adaptation;

- self-diagnosis;

- recognition of the Alfa Romeo CODE (immobilizer);

- cold starting check control;

- control of combustion - Lambda sensors;

- phase transformer control;

- detonation control;

- control of mixture enrichment during acceleration;

- fuel cut-off when accelerator pedal is released;

- fuel vapour recovery;

- control of maximum rpm;

- high pressure fuel pump control;

- connection with the climate control system;

- cylinder position recognition;

- control of optimum injection time for each cylinder;

- adjustment of ignition advance;

- idle speed management (also dependent on battery voltage);

- fan control;

- connection with ABS/ASR control unit;

- connection with the control panel;

- fuel system diagnostics;

- catalytic converter diagnostics;

- misfire detection;

- Lambda sensor diagnostics.

Injection system

The essential conditions to be met by the air-fuel mixture for efficient operation of engines with controlled ignition systems are mainly as follows:

- the metering (air/fuel ratio) must be kept as close as possible to stoichiometric levels to assure maximum catalytic converter conversion capacity (max. efficiency);

- the homogeneity of the mixture, consisting of petrol distributed throughout the air as finely and uniformly as possible.

Information that the control unit processes to control optimum metering is received by electrical signals emitted by:

- air flow meter and air temperature sensor, for the exact quantity of air taken in;

- rpm sensor that generates an alternating single-phase signal whose frequency is an indicator of engine rpm;

- accelerator pedal with built-in potentiometer to recognize the conditions requested by the driver;

- coolant temperature sensor on the thermostat;

- Lambda sensors to measure exhaust gas oxygen content.

Ignition system

The ignition system is the static, inductive discharge type (i.e. without a high tension distributor).

The system has a single coil for each spark plug with an integrated power stage; the advantages of this solution are:

- lower electrical overload;

- guaranteed constant discharge at each spark plug.

At the idle speed only the ignition coils receive a dual pilot signal (two ignitions) and one signal only (single ignition).

The control unit contains a memory map with a set of optimum ignition advance values (for the cylinder in combustion phase) that the engine can adopt according to the required speed and engine load.

The control unit corrects the advance value mainly on the basis of:

- engine coolant temperature;

- intake air temperature;

- detonation.

Information that the control unit processes to operate the single coils is received by electrical signals emitted by:

- air flow meter and air temperature sensor, for the exact quantity of air taken in;

- rpm sensor that generates an alternating single-phase signal whose frequency is an indicator of engine rpm;

- detonation sensor, to recognize the cylinder with detonation and correct the ignition advance;

- throtle potentiometer to recognize minimum, partial and full-gas load conditions;

- timing sensor.

The control unit uses the rpm signal to recognize misfiring that could damage the catalytic converters.

Operation

Diagram showing information entering/leaving the control unit

1. Injectors

2. Fuel pump

3. Air conditioning compressor

4. Engine cooling fan

5. Cruise Control system control

6. Lambda sensor downstream of the catalytic converter

7. Air conditioning system gas pressure linear sensor

8. Brake pedal switch

9. Speedometer signal

10. Lambda sensor upstream of the catalytic converter

11. Coolant temperature sensor

12. Timing sensors

13. Detonation sensors

14. Fuel pressure sensor

15. Rpm sensor

16. Accelerator pedal potentiometer

17. Flow meter

18. Battery

19. Clutch pedal switch

20. Motorized throttle body

21. CAN line

22. Alfa CODE

23. Diagnostic socket

24. Fuel vapour recirculation solenoid valve

25. Ignition coils

26. Phase transformer solenoid valves

27. Injection warning light

28. Oil pressure switch

29 - Engine rpm signal

30 - Fuel pressure regulator

System operating logics

Self-learning

The control unit implements the self-learning logic in the following conditions:

- installation of a new injection control unit,

- installation of a new throttle body actuator integrated with D.V.L.

- installation of a new modular intake manifold.

The self-learning values for the integrated throttle body with D.V.L. are preserved with the battery disconnected.

The learning values for the flywheel for recognizing misfiring are, on the other hand, lost.

System self-adjustment

The control unit is equipped with a self-adjustment function that is designed to recognize the changes that take place in the engine due to the processes of bedding in and ageing of both the components and the engine itself in time.

There are two adaptive functions depending on the two intervention plans: minimum and utilization.

Self-diagnosis

The control unit auto-diagnostic system checks that the system is working properly and signals any irregularities by means of an MIL warning light in the instrument panel with a standardized ideogram and colour laid down by European regulations. This warning light indicates engine management faults and also faults detected by EOBD diagnostic strategies.

The MIL warning light operating strategy is as follows:

- with the ignition on, the warning light comes on and remains on until the engine has been started up. The control unit self-diagnostic system checks the signals coming from the sensors comparing them with the permitted limits.

Fault indication during start up:

- the failure of the warning light to go out when the engine has been started indicates that there is an error memorized in the control unit.

Fault indication during operation:

- the warning light comes on in flashing mode to indicate possible catalytic converter damage due to misfiring;

- the warning light comes on in constant mode to indicate the presence of engine management or EOBD diagnostic errors.

RECOVERY

From time to time the control unit defines the type of recovery according to the components that are faulty. The recovery parameters are managed by components that are not faulty.

Cold starting check

In cold starting conditions, the mixture naturally becomes leaner and this gives rise to low fuel evaporation at low temperatures:

- fuel condensation on inner walls of the intake manifold;

- increased lubrication oil viscosity.

The electronic control unit detects this condition and corrects the injection time on the basis of:

- coolant temperature;

- intake air temperature;

- battery voltage;

- engine rpm.

The ignition advance is determined solely on the basis of rpm and coolant temperature.

During the start-up stage, the control unit sends an initial simultaneous injection command to all injectors (full-group injection). Once cylinder phase has been detected, normal phased sequential operation can begin. At idle speed the injection angle is 45° before T.D.C.; at other speeds the injection angle varies between 310° and 370° before T.D.C. to allow the homogeneity of the mixture.

While the engine is warming up, the control unit operates throttle body built into the DVL to modulate the amount of air required to ensure engine revs are high enough to keep the engine running.

The rotation speed is decreased as the temperature increases until the rated level is reached with the engine warm.

Combustion - lambda sensor check

In EOBD systems, the Lambda sensors are all the same type and are located upstream and downstream of the catalytic converter.

The upstream sensors monitor concentration and are known as the 1st loop (closed loop of upstream sensors). During idling the information from the upstream Lambda sensors is not used for correcting the mixture strength.

The sensors downstream of the catalytic converter are used to for converter diagnostics and to fine-tune 1st loop control parameters.

The second loop is therefore adaptive to make up for production discrepancies and slight drift that upstream sensor responses could experience due to ageing and contamination.

This control is known as 2nd loop control (downstream sensors closed loop).

Phase transformer control

In order to ensure the optimum quantity of air introduced by the engine, the control unit controls:

- the intake timing in two angular positions.

The control unit sets the open stage at the maximum torque speed:

- cam advance of 25° engine.

The control unit sets the closed stage at the maximum power speed:

- cam in normal position.

The control unit sets the closed stage at the idle speed:

- cam in normal position.

In the other engine operating conditions, the control unit selects the most suitable configuration for optimum performance, consumption and emissions.

Detonation control

The control unit may delay ignition selectively for a particular cylinder on the basis of a combination of parameters received from knock and timing sensors and:

- reduce ignition advance in 3° steps to a maximum of 9°;

- update the threshold to take into account underlying noise levels and engine ageing.

During acceleration, the control unit uses a higher threshold due to the higher engine noise.

When the knock disappears, the control unit increases ignition advance in 0.75° steps until recovery is complete.

The control unit with a self-adaptive function:

- stores advance reductions that are repeated continuously;

- adjusts mapping to the various different engine service conditions.

RECOVERY

If the timing sensor or knock sensor or injection control unit should fail, a variable ignition delay is implemented on the basis of rpm and engine temperature. Maximum ignition delay is always less than 9° engine.

Control of enrichment during acceleration

In cases of high acceleration demand, the control unit modifies injection time and throttle position.

RECOVERY

The control unit replaces the signal from the faulty air flow meter with a signal from the potentiometer built into the throttle body actuator integral with the DVL.

Fuel cut-off when the accelerator pedal is released

The control unit with:

- detection of idling status;

- rpm above a certain threshold;

deactivates fuel injection on the basis of:

- rpm;

- engine temperature;

- vehicle speed.

Before reaching idling level, the rpm descent rate is assessed. If this exceeds a certain level, fuel injection is partially re-activated to ensure that engine rpm drops smoothly to idling level.

Once idling speed has been reached, normal functions are resumed.

Fuel vapour recovery

Fuel vapours (pollutants) collected in the activated carbon filter (canister) are directed to the intake ports to be burnt.

This takes place by means of a solenoid valve operated by the control unit which alternates phases in which it is open (canister scavenging stage) with phases in which it is closed (carburation learning stage).

During this opening stage, the opening duty-cycle for the solenoid valve is regulated by the control unit in order to eliminate the fuel vapours without altering the engine carburation.

Maximum rpm check

According to the rpm level reached by the engine, the control unit:

- above 6800 rpm, cuts off the fuel supply to the injectors (rpm can rise to a peak of 7000 rpm for a period no longer than 5 secs.);

- below 6600 rpm, injector operation is resumed.

Connection with the climate control system

The compressor takes up power from the engine when the climate control system is activated.

When idling, the control unit adjusts air flow to the new power requirement. This offers the benefit of maintaining optimum driveability.

The control unit manages the exclusion of the compressor:

- over 6500 rpm;

- above a set engine coolant temperature threshold (117°C);

- upon start-up.

Recognition of cylinder position

During each engine revolution, the control unit detects the cylinder in combustion phase: controls the injection and ignition sequence for the appropriate cylinder.

If the timing sensor is faulty, the control unit implements the following strategies:

- with the engine running, it ensures the engine runs correctly due to its memorized cylinder sequence;

- if the engine is turned off and restarted, the ignition is activated for coil pairs with a lost spark. Knock control is deactivated and a fixed delay is applied for all cylinders.

Check on optimum injection time for each cylinder

The control unit computes the optimum injection time for each cylinder on the basis of special maps:

- it modifies the injection opening start point;

- it maintains the closure point determined by the mapping, selected on the basis of rpm;

- fuel injection is sequential and phased for each cylinder (S.E.F.I.).

Adjustment of ignition advance

The control unit processes the signals coming from the sensors and determines:

- ignition advance for each cylinder;

- ignition delay for the relevant cylinder (affected by detonation).

Idle speed check

The control unit detects idling status when the accelerator pedal is released.

The control unit controls the idle speed ignoring the signal from the Lambda sensors, depending on the consumers switched on and the brake-clutch pedal signals and adjusts the injection times.

at idle speed the injection angle is 45° before T.D.C.; at other speeds the injection angle varies between 310° and 370° before T.D.C. to allow the homogeneity of the mixture.

Fan control

Depending on the temperature of the coolant, the control unit controls the engagement of the fan:

- 1st speed activation temperature 97°C;

- 2nd speed activation temperature 102°C.

If the air conditioning system is switched on the control unit controls the engagement of the fan 1st speed.

When no coolant temperature signal is present, the control unit implements the recovery function by activating the fan at the 2nd speed until the error disappears.

Before the fan is deactivated, the throttle opening is increased to prevent engine rpm from falling.

Connection with abs/asr control unit

Communication between the engine management control unit and the ABS/ASR control unit is via the CAN line available at both control units.

If the wheels slip (indicated by the ABS/ASR control unit), the control unit reduces the drive torque by:

- reducing the ignition advance;

- reducing the throttle opening angle.

Brake servo vacuum check

Depending on the signal coming from the vacuum sensor fitted on the brake servo, the control unit alters the position of the motorized throttle, updates the injection parameters and switches off the air conditioning compressor if necessary in order to maintain optimum vacuum values in the brake servo circuit.

INJECTION-IGNITION SYSTEM COMPONENTS

Med7.6.1 injection-ignition control unit

The control unit is fitted in the engine compartment on the battery drip tray.

The control unit memory is the flash EPROM type, i.e. it can be reprogrammed from the outside without affecting the hardware.

The adoption of the Alfa Romeo CODE means that control units cannot be swapped between vehicles.

The self-learning procedure must be carried out if the injection control unit or the air chamber or the throttle casing integrated with D.V.L is replaced.

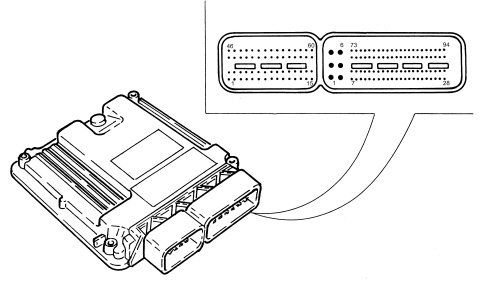

Pin out

ENGINE SIDE (60-WAY) CONNECTOR

1. Cylinder 3 coil (pin 4)

2. n.c.

3. n.c.

4. INLET phase transformer L.S. signal

5. n.c.

6. n.c.

7. Fuel pressure sensor and timing sensor 1 and 2 negative (pin 1)

8. Signal from fuel pressure sensor (pin 2)

9. Throttle actuator negative (pin 2)

10. IP1 signal from throttle actuator (pin 6)

11. Flow meter (pin 3)

12. Flow meter (pin 5)

13. n.c.

14. n.c.

15. Throttle actuator motor positive power supply (pin 4)

16. Cylinder 4 coil (pin 3)

17. n.c.

18. Canister solenoid valve L.S. signal

19. OUTLET phase transformer L.S. signal

20. Pressure control valve

21. n.c.

22. signal from engine coolant temperature sensor

23. n.c.

24. power supply for fuel pressure sensor and timing sensor 1 and 2 (pin 3)

25. IP2 signal from throttle actuator (pin 5)

26. flow meter (pin 4)

27. flow meter (pin 1)

28. signal from insufficient engine oil pressure switch

29. n.c.

30. throttle actuator motor negative power supply (pin 1)

31. cylinder 2 coil (pin 5)

32 + cylinder 3 high pressure injector (pin 1)

33. - cylinder 3 high pressure injector (pin 2)

34. - cylinder 4 high pressure injector (pin 2)

35. + cylinder 4 high pressure injector (pin 1)

36. n.c.

37. n.c.

38. n.c.

39. n.c.

40. signal from engine rpm sensor (pin 2)

41. signal from timing sensor 1 (pin 2)

42. n.c.

43. detonation sensor signal 2 (pin 1)

44. detonation sensor signal 1 (pin 2)

45. n.c.

46. cylinder 1 coil (pin 6)

47. + cylinder 2 high pressure injector (pin 1)

48. - cylinder 2 high pressure injector (pin 2)

49. - cylinder 1 high pressure injector (pin 2)

50. + cylinder 1 high pressure injector (pin 1)

51. n.c.

52. n.c.

53. n.c.

54. n.c.

55. signal from engine rpm sensor (pin 1)

56. signal from timing sensor 2 (pin 2)

57. n.c.

58. detonation sensor 2 (pin 2)

59. detonation sensor 1 (pin 1)

60. n.c.

VEHICLE SIDE (94-WAY) CONNECTOR

1. earth

2. earth

3. primary load power supply

4. earth

5. primary load power supply

6. primary load power supply

7. n.c.

8. petrol pump relay positive control

9. n.c.

10. n.c.

11. H.S. A/C Req signal from NCL

12. compressor relay on CVM L.S. negative

13. n.c.

14. signal from brake lights control (NA)

15. n.c.

16. air conditioning linear pressure sensor negative

17. n.c.

18. n.c.

19. n.c.

20. signal from brake lights control (NC)

21. n.c.

22. n.c.

23. n.c.

24. n.c.

25. L.S. negative control for main relay on CVM

26. n.c.

27. n.c.

28. n.c.

29. n.c.

30. n.c.

31. n.c.

32. n.c.

33. negative from clutch pedal switch (NA)

34. Cruise control +/set signal from steering column switch unit

35. activation signal cruise control ON from steering column switch unit

36. n.c.

37. n.c.

38. air conditioning linear pressure sensor signal

39. n.c.

40. n.c.

41. n.c.

42 n.c.

43. Cruise control signal from steering column switch unit

44. n.c.

45 n.c.

46 n.c.

47. n.c.

48 n.c.

49 n.c.

50. planar Lambda sensor 1 (downstream of cat) (pin 3)

51. linear Lambda sensor 2 (upstream of cat) (pin 3)

52. planar Lambda sensor 2 (downstream of cat) (pin 2)

53. planar Lambda sensor 2 (downstream of cat) (pin 1)

54. n.c.

55. linear Lambda sensor 1 (upstream of cat) (pin 2)

56. linear Lambda sensor 1 (upstream of cat) (pin 1)

57. linear Lambda sensor 2 (upstream of cat) (pin 2)

58. linear Lambda sensor 2 (upstream of cat) (pin 1)

59. accelerator pedal potentiometer negative

60. signal from accelerator pedal potentiometer

61. Accelerator pedal potentiometer power supply

62. n.c.

63. C-CAN H

64. C-CAN H

65. n.c.

66. n.c.

67. INT/1 from F-16 CVM 7.5A

68. L.S. control for M.I. warning light in NQS

69. n.c.

70. L.S. relay negative control on CVM for engine cooling fan high speed

71. n.c.

72. n.c.

73. linear Lambda sensor 1 (upstream of cat) (pin 3)

74. planar Lambda sensor 1 (downstream of cat) (pin 2)

75. planar Lambda sensor 1 (downstream of cat) (pin 1)

76. n.c.

77. linear Lambda sensor 1 (upstream of cat) (pin 6)

78. linear Lambda sensor 1 (upstream of cat) (pin 5)

79. linear Lambda sensor 2 (upstream of cat) (pin 5)

80. linear Lambda sensor 2 (upstream of cat) (pin 5)

81. accelerator pedal potentiometer negative

82. signal from accelerator pedal potentiometer

83. accelerator pedal potentiometer power supply

84. n.c.

85. C-CAN L

86. C-CAN L

87. K line

88. n.c.

89. L.S. relay negative control on CVM for engine cooling fan low speed

90. n.c.

91. n.c.

92. +30 from F-18 CVM 7.5A

93. W line

94. planar Lambda sensor 2 (downstream of cat) (pin 3)

Injectors

They are fitted directly on the cylinder head and are operated by the engine management control unit. They are secured by means of a "fork" type fastening secured to the head by a special nut.

The injectors have a single opening with the fuel sprayed at an angle of 60° in relation to the injector.

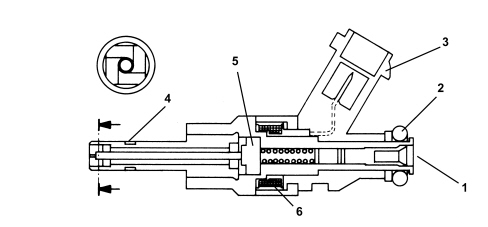

1. Fuel inlet

2. O - Ring seal

3. Electrical connection

4. Teflon seal

5. Armature

6. Coil

Pressure pump

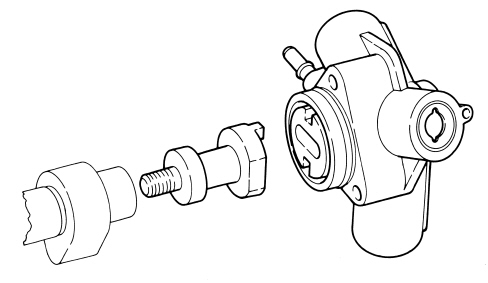

It is the radialjet type with three radial pistons and is operated by the exhaust side camshaft by means of a special spacer.

When the engine has been started the fuel pressure in the rail is about 50 bar during idling.

The pressure in the rail can reach a maximum of 100 bar during operation depending on the engine load conditions.

The maximum pressure produced by the pressure pump is around 120 bar (if the pressure regulator is stuck).

Because the pressure pump must be fed at a pressure of at least 3.5 bar, the fuel system is equipped with an auxiliary fuel pump submerged in the tank.

The pressure pump is lubricated and cooled by the fuel via special channels.

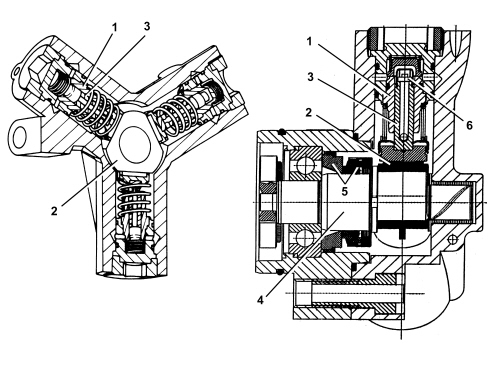

1. Cylinder

2. Cam

3. Piston

4. Pump shaft

5. Dynamic seal

6. Single-acting valve

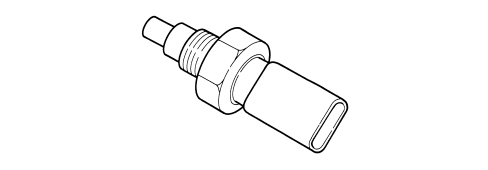

Engine coolant temperature sensor.

It is fitted on the thermostatic cup and incorporates the sensitive elements (2 NTC) in a single body which tranform the variations in temperature into variations in resistance thereby allowing the temperature of the engine coolant to be measured.

The sensor is designed using semiconductor technology. In other words, if the temperature of the sensor increases as the temperature of the coolant increases, the resistance value decreases.

Because the resistance does not change in linear fashion as the temperature increases, it is relatively higher at low temperatures than at high temperatures.

The following functions are involved with the sensor:

- information on the temperature of the coolant to the engine management control unit;

- information for the instrument panel to provide a reading for the driver.

The NTCs connect the sensor casing to an insulated earth therefore the sensor has a four-way electrical connection.

The engine coolant temperature sensor also informs the climate control system control unit.

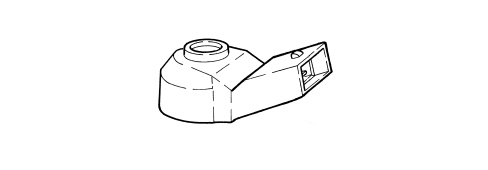

Detonation sensor

The piezoresistive type detonation sensor is fitted on the crankcase between and measures the intensity of vibrations caused by knock in the combustion chambers.

The piezoresistant crystal in the sensor detects vibrations generated at frequencies between 12 and 16 Hz and converts them to electrical signals that are sent to the injection control unit.

Rpm sensor

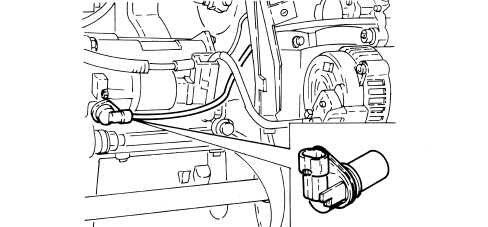

The sensor is fitted on the cylinder block/crankcase facing the flywheel on the crankshaft.

Operation

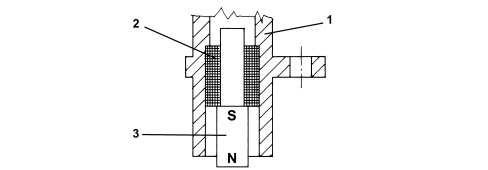

The sensor takes the form of a tubular case (1) containing a permanent magnet (3) and an electrical winding (2).

Due to the passage of the phonic wheel teeth, the magnetic flux set up by magnet (3) undergoes fluctuations due to changes in the gap.

These fluctuations set up an electromotive force in winding (2) and a voltage is set up at the terminals that is alternatively positive (tooth facing sensor) and negative (gap facing sensor).

The rpm sensor peak output voltage depends, all else being equal, on the distance between the sensor and the phonic wheel teeth (gap).

Timing sensor

The timing sensor, one for each camshaft, is the Hall effect type where a matching element and a 3 pin connector and a magnet and a signal acquisition circuit are incorporated. There are two sensors, one for each camshaft.

Accelerator pedal with integrated potentiometer

The sensor consists of a casing secured to the accelerator pedal; the case contains an axially-located shaft connected to two potetiometers: a main one and one safety one.

The engine management control unit implements the following recovery strategies:

- if one of the two potentiometers fails, this allows the throttle to be opened to a maximum of 25% over a long time period;

- if there is a total failure of the two potentiometers or a failure of one potentiometer and the brake pedal switch, the opening of the throttle is excluded.

A coil spring on the shaft ensures the correct amount of resistance to pressure while a second spring ensures return following release.

Operation

The accelerator pedal position is converted into an electrical voltage signal and sent to the injection control unit by the potentiometer connected to the pedal.

The accelerator pedal position signal is processed together with the information relating to the engine rpm to obtain the injection times and the fuel pressure.

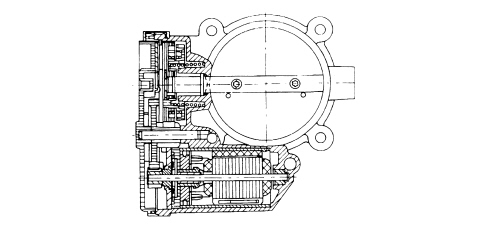

Throttle casing with d.v.l.

This is fitted on the air chamber and regulates the amount of air taken in by the engine.

According to the signal received from the accelerator pedal potentiometer, the engine management control unit controls the throttle opening by means of a direct current motor built into the integrated throttle body with D.V.L.

Throttle opening takes place from 0° to 80°, i.e. including idle speed adjustment range.

The DVL integrated throttle body is equipped with two built-in potentiometers, each of which controls the other.

If both potentiometers should fail or in the case of a power cut, the control unit reduces drive torque on the basis of accelerator pedal position.

- with the accelerator pedal fully depressed, it cuts off fuel to one or more cylinders until a maximum speed of 2500 rpm is reached;

- in the intermediate positions, it cuts off the supply to one or more cylinders until a speed below 2500 rpm is reached.

The self-learning procedure must be carried out if the injection control unit or the air chamber or the throttle casing integrated with D.V.L, is replaced.

Air flow meter

The flow meter is incorporated in the air filter casing cover and it is the heated film type.

The intake air temperature sensor is built into the flow meter.

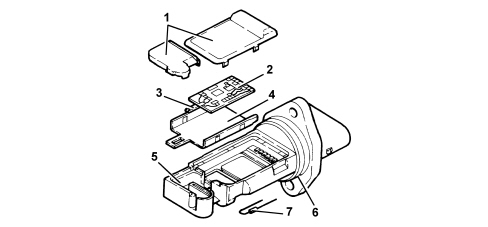

1. Covers

2. Electronic card

3. Sensor

4. Support plate

5. Support

6. O - Ring seal

7. Temperature sensor

The air flow meter cannot be disassembled.

Operation

The principle of operation is based on a heated membrane positioned within a measurement channel that carries air into the engine.

The hot film membrane is maintained at constant temperature (about 120°C higher than the incoming air temperature) by the heating coil.

The air mass that flows through the measurement channel tends to remove heat from the membrane. Current must therefore flow through the coil to maintain the membrane at a constant temperature.

This current is measured by a special Wheatstone bridge.

The current is therefore proportional to the flowing air mass.

The flow meter measures the air mass directly (not the volume) to eliminate problems of temperature, altitude, pressure etc.
