INTRODUCTION - ENGINE COOLING

3.2 JTS

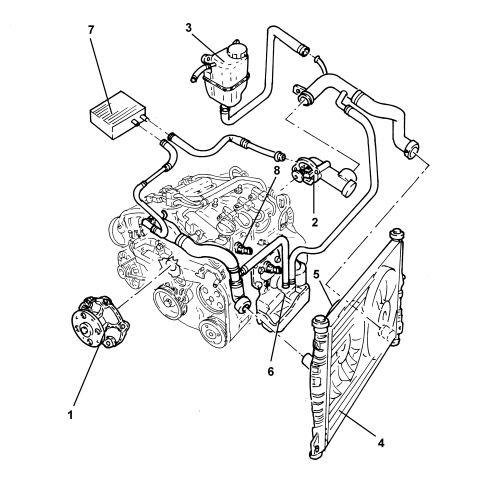

Cooling system

1. Water pump

2. Thermostat

3. Supply reservoir

4. Radiator

5. Fans

6. Water/engine oil heat exchanger

7. Passenger compartment heater

8. Coolant temperature sensor

Function:

cooling of the engine and the engine oil.

Cooling circuit components

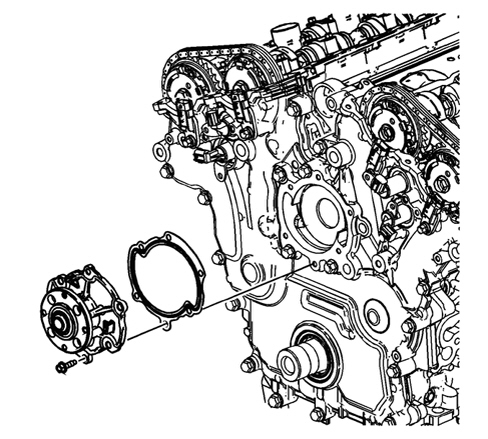

A feature of this engine is that the water pump is located in a housing in the metal timing cover.

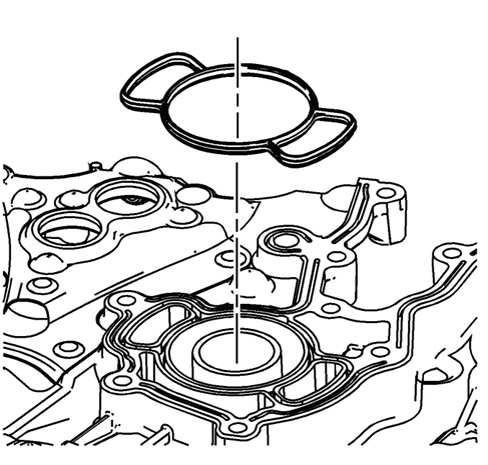

The seal on the crankcase side is ensured by a gasket which has a special "butterfly" shape; the pump impeller rotates by means of a pulley driven by the services belt.

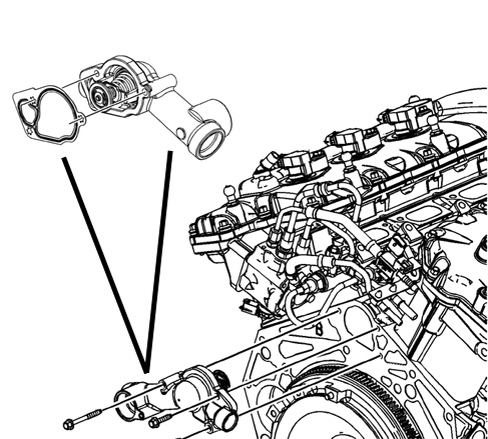

The thermostat unit is connected to the crankcase, flywheel side, by means of bolts, as can be seen in the diagram below; the engine coolant temperature sensor is located on the left cylinder head, outside.

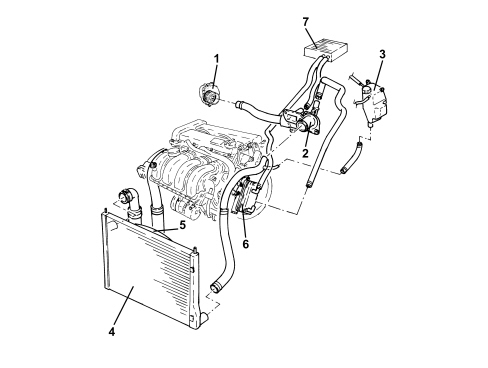

2.2 JTS

ENGINE COOLING SYSTEM

1. Water pump

2. Thermostat

3. Supply reservoir

4. Radiator

5. Fan

6. Water/engine oil heat exchanger

7. Heater

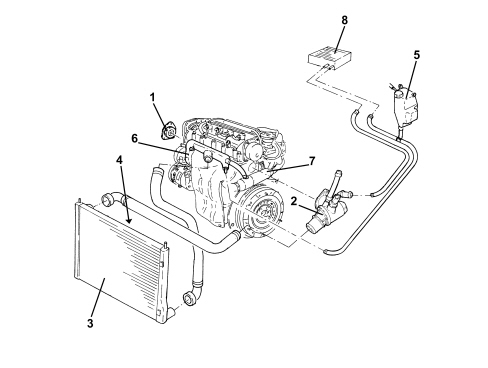

2.4 JTD 20v

ENGINE COOLING SYSTEM

1. Water pump

2. Thermostat

3. Radiator

4. Fan

5. Supply reservoir

6. Water pump rigid inlet pipe

7. Water/exhaust gas heat exchanger for E.G.R. system.

8. Heater unit
