ENGINE COOLANT SUPPLY RESERVOIR - R.R.

Operation 1088B10 · ENGINE COOLING RADIATOR

2.2 JTS

Removing

Op. 0010T20 ENGINE COOLANT - CHANGE

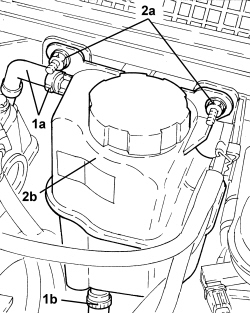

1. Loosen the bands, disconnect the degassing pipe (1a) and the system supply pipe (1b).

2. Undo the nuts (2a) and remove the engine coolant supply reservoir (2b).

Refitting

- Fit the engine cooling radiator in place and secure it using the bolts.

- Connect the system supply and degassign pipes and secure them using the bands.

Op. 0010T20 ENGINE COOLANT - CHANGE

3.2 JTS

Removing

Op. 0010T20 ENGINE COOLANT - CHANGE

1. Loosen the bands, disconnect the degassing pipe (1a) and the system supply pipe (1b).

2. Undo the nuts (2a) and remove the engine coolant supply reservoir (2b).

Refitting

- Place the engine coolant supply reservoir back in its housing and secure it using the nuts.

- Connect the degasing pipe and the system supply pipe and tighten the bands.

Op. 0010T20 ENGINE COOLANT - CHANGE

2.4 JTD 20v

Removing
